Personal Light: Removal

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE MAP LIGHT ASSEMBLY (w/o Sliding Roof)
    1. Open the cover

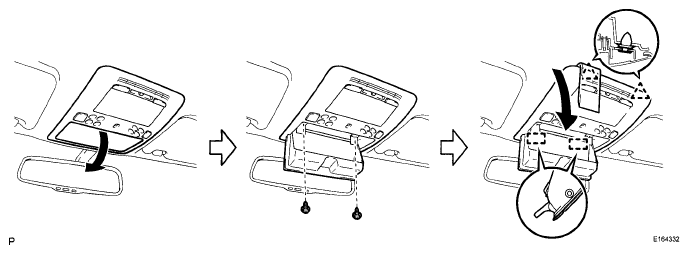

      Fig 1: Removing Map Light Assembly (W/O Sliding Roof)
      G05754631Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws
    3. Using a molding remover, disengage the 2 clips
    4. Disengage the 2 guides
    5. Disconnect the connector and remove the map light assembly.
  2. REMOVE MAP LIGHT ASSEMBLY (w/ Sliding Roof)
    1. Open the cover

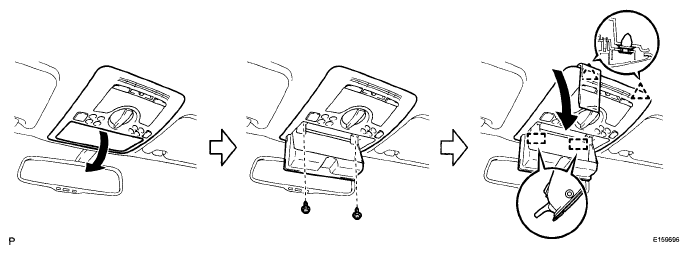

      Fig 2: Removing Map Light Assembly (W/ Sliding Roof)
      G05754632Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws
    3. Using a molding remover, disengage the 2 clips
    4. Disengage the 2 guides
    5. Disconnect the connector and remove the map light assembly
  3. REMOVE MAP LIGHT BULB
    1. Turn the 3 map light bulbs and 3 map light sockets in the direction indicated by the arrows in the illustration and remove them as a unit
    2. Remove the 3 map light bulbs from the 3 map light sockets.
      Fig 3: Removing 3 Map Light Bulbs
      G05754633Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
