Sliding Roof Housing: Reassembly

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY
1. Hold down the window deflector
  NOTE: Make sure that the spring indicated by the arrow in the illustration is securely installed.

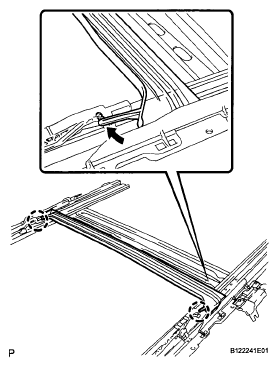

  Fig 1: Installing Sliding Roof Drive Cable Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to install it.

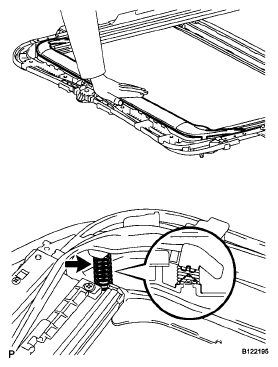

  Fig 2: Sliding Roof Drive Cable Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 2 claws and install the sliding roof drip channel.

  Fig 3: Installing Sliding Roof Drip Channel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the 2 sliding roof side stoppers with the 2 screws.
  Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

  Fig 4: Identifying Sliding Roof Side Stoppers With Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ADJUST FULLY CLOSED POSITION
1. Using a screwdriver, slide the sliding roof drive cable sub-assembly in either direction as indicated by the arrows in the illustration and align the matchmarks.
  HINT:

  Tape the screwdriver tip before use.

  Fig 5: Identifying Matchmark On Sliding Roof Housing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SUNSHADE TRIM SUB-ASSEMBLY
1. Insert the sunshade trim into the sliding roof housing sub-assembly.
2. Install the sliding roof piece sub-assembly LH and RH with the 2 screws
  Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

  Fig 6: Identifying Sliding Roof Piece Sub-Assembly And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY
1. Install the sliding roof drive gear sub-assembly with the 2 bolts.
  Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  Fig 7: Identifying Sliding Roof Drive Gear Sub-Assembly With Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Engage the claw and install the sliding roof drive gear bracket.

  Fig 8: Identifying Sliding Roof Drive Gear Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
