Sliding Roof Housing: Disassembly

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY
1. Disengage the claw and remove the sliding roof drive gear bracket.

  Fig 1: Identifying Sliding Roof Weatherstrip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and sliding roof drive gear sub-assembly.

  Fig 2: Identifying Sliding Roof Drive Gear Sub-Assembly And Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SUNSHADE TRIM SUB-ASSEMBLY
1. Remove the 2 screws and sliding roof piece sub-assembly LH and RH.
2. Slide and remove the sunshade trim sub-assembly.
Fig 3: Identifying Sliding Roof Piece Sub-Assembly And Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SLIDING ROOF DRIVE CABLE SUB-ASSEMBLY
HINT.

Do not disassemble the sliding roof drive cable sub-assembly except when replacing it.
1. Remove the 2 screws and 2 sliding roof side stoppers.

  Fig 4: Identifying Sliding Roof Side Stoppers And Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

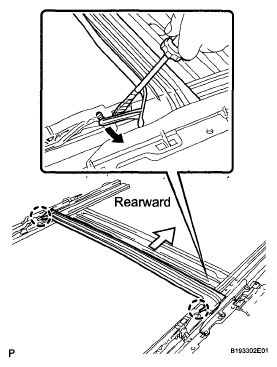

2. Using a screwdriver, disengage the 2 claws Then slide the sliding roof drip channel rearward to remove it.
  HINT.

  Tape the screwdriver tip before use.

  Fig 5: Sliding Roof Drip Channel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Hold down the window deflector.

  Fig 6: Holding Window Deflector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a screwdriver, slide the sliding roof drive cable sub-assembly in the direction indicated by the arrow in the illustration to remove it

  Fig 7: Sliding Roof Drive Cable Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
