Sliding Roof Housing: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

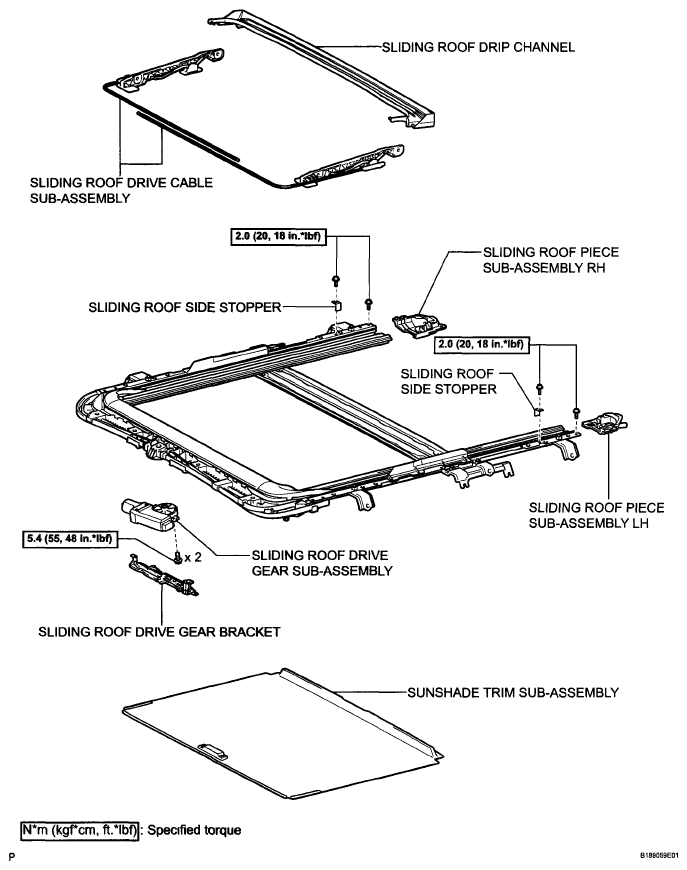

Fig 1: Identifying Sliding Roof Housing Replacement Components With Torque Specification (1 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

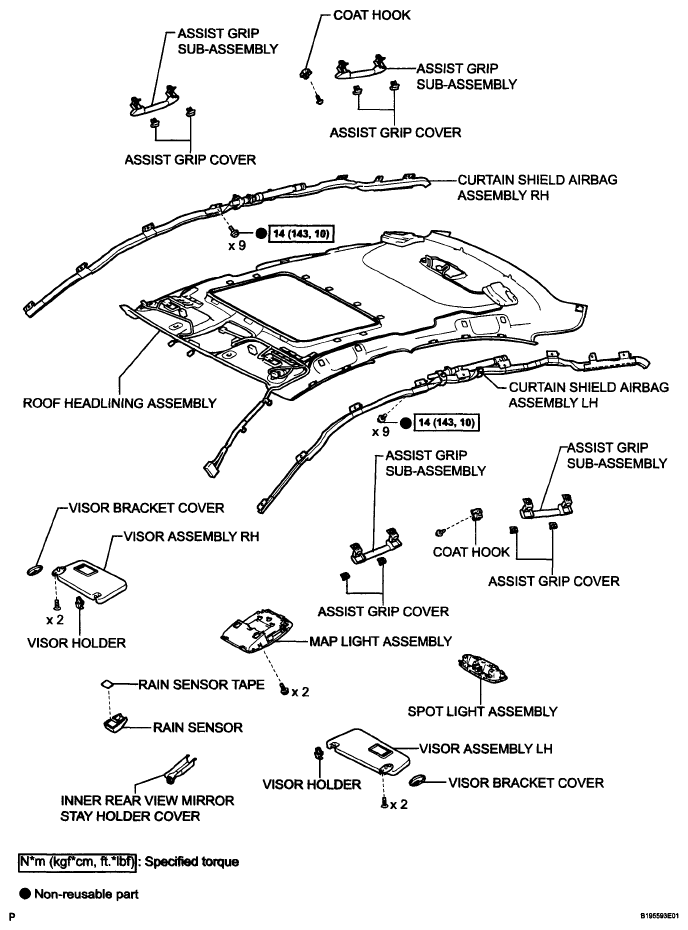

Fig 2: Identifying Sliding Roof Housing Replacement Components With Torque Specification (2 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

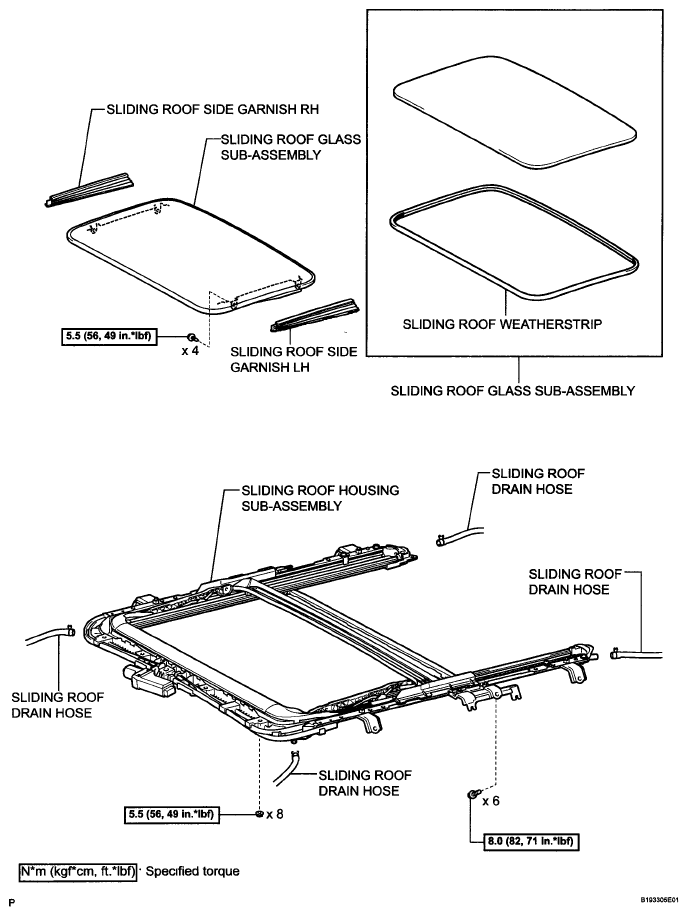

Fig 3: Identifying Sliding Roof Housing Replacement Components (3 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Identifying Sliding Roof Housing Replacement Components With Torque Specification (4 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Identifying Sliding Roof Housing Replacement Components With Torque Specification (5 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Identifying Sliding Roof Housing Replacement Components With Torque Specification (6 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Identifying Sliding Roof Housing Replacement Components With Torque Specification (7 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Identifying Sliding Roof Housing Replacement Components (8 Of 13)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Identifying Sliding Roof Housing Replacement Components With Torque Specification (9 Of 13)

Fig 10: Identifying Sliding Roof Housing Replacement Components With Torque Specification (10 Of 13)

Fig 11: Sliding Roof Housing Replacement Components With Torque Specifications (11 Of 13)

Fig 12: Sliding Roof Housing Replacement Components With Torque Specifications (12 Of 13)

Fig 13: Sliding Roof Housing Replacement Components With Torque Specifications (13 Of 13)
