Mirror Heater does not Operate with Rear Defogger Switch: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

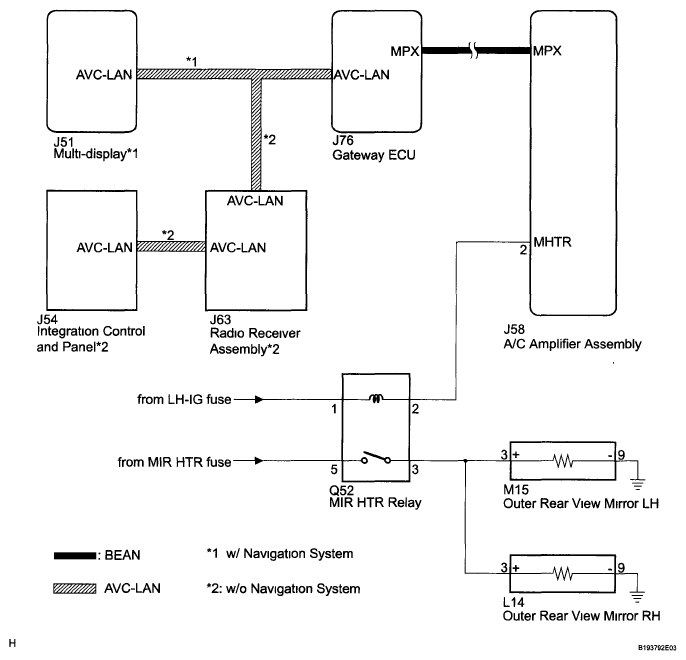

Fig 1: A/C Amplifier Assembly - Wiring Diagram
G05756180Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
