POWER WINDOW REGULATOR MOTOR (for Rear Door): Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

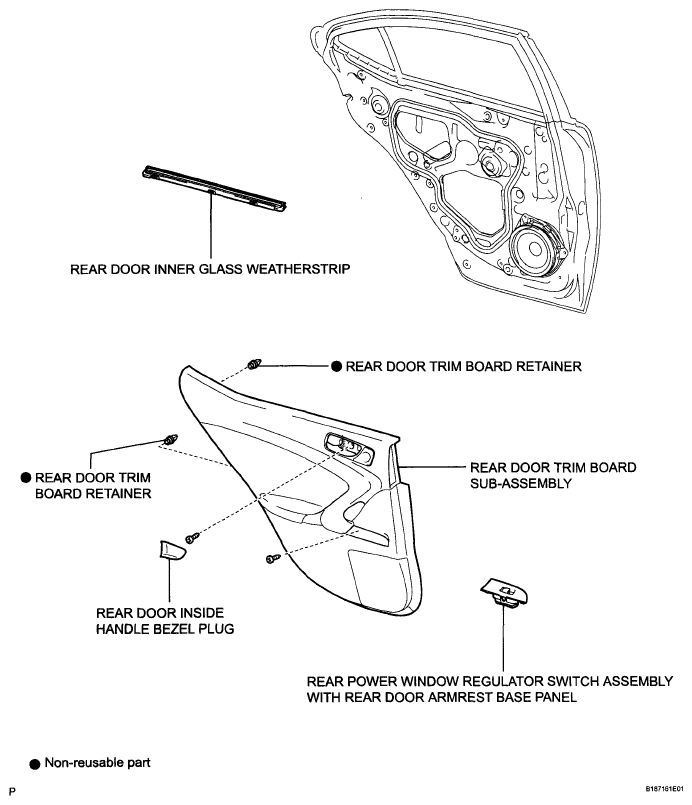

Fig 1: Identifying Power Window Regulator Motor (For Rear Door) Replacement Components (1 Of 2)

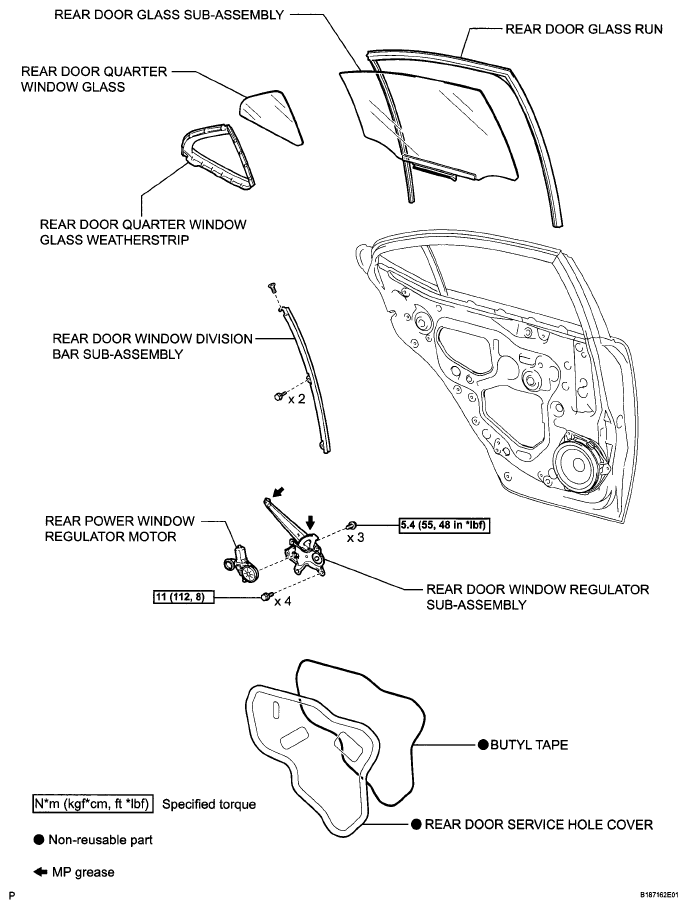

Fig 2: Power Window Regulator Motor (For Rear Door) Replacement Components (2 Of 2) With Torque Specifications
