Tire Pressure Warning Antenna: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Tire Pressure Warning Antenna Replacement Components (1 Of 3)
G05752489Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Identifying Tire Pressure Warning Antenna Replacement Components (2 Of 3) With Torque Specifications
G05752490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

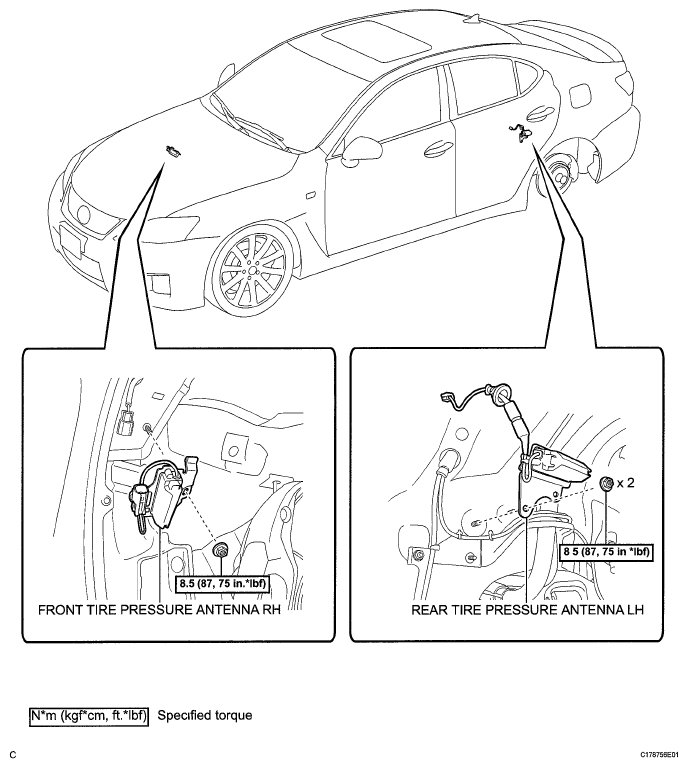

Fig 3: Tire Pressure Warning Antenna Replacement Components (3 Of 3) With Torque Specifications
G05752491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
