Short in CAN Bus Lines: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

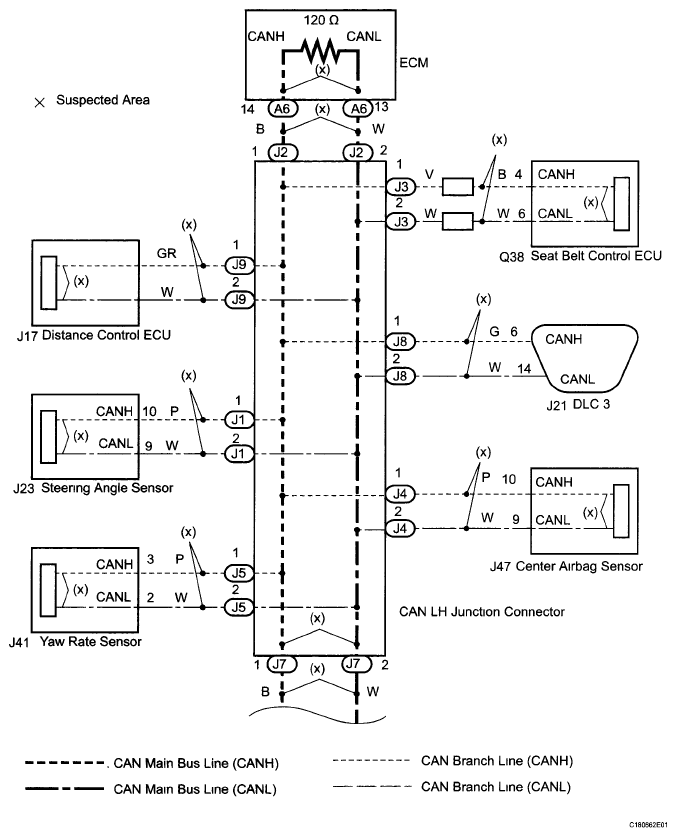

Fig 1: Can Communication - Wiring Diagram (1 Of 2)
G05754165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Can Communication - Wiring Diagram (2 Of 2)
G05754166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
