Center Airbag Sensor Communication Stop Mode: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

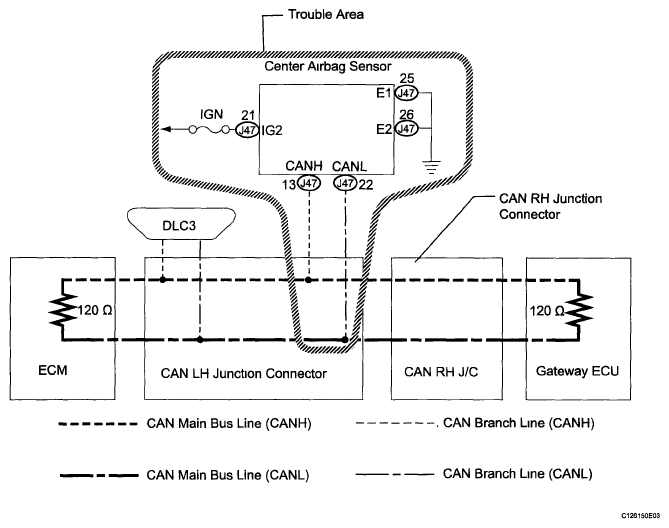

Fig 1: Center Airbag Sensor Communication - Wiring Diagram
G05754153Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
