Inspection Procedure

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK MAIN BODY ECU LH (COWL SIDE JUNCTION BLOCK LH)
    1. Measure the voltage according to the value(s) in the table below

      Standard Voltage

      TESTER CONNECTION TESTER CONNECTION CHART

      Tester Connection Condition Specified Condition
      LD-13 (IG) - LD-8 (SGND) Engine switch off Below 1 V
      Engine switch on (IG) 11 to 14 V
      LD-13 (IG) - LD-9 (SGND) Engine switch off Below 1 V
      Engine switch on (IG) 11 to 14 V
      LM-1 (WIG) - LD-3 (GND) Always 11 to 14 V

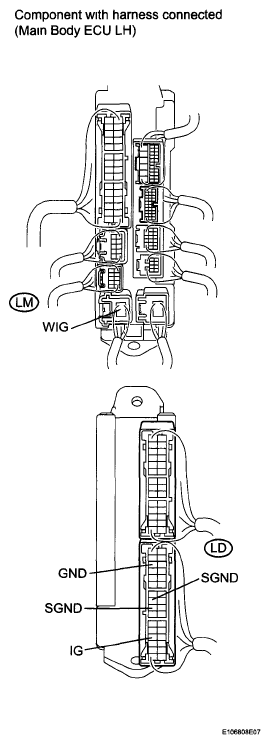

    2. Fig 1: Identifying Main Body ECU LH Connector Terminal
      G05756246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: Go to step 2

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE  )

  2. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU LH - BODY GROUND)
    1. Disconnect the LD connector from the main body ECU LH (cowl side junction block LH).
    2. Measure the resistance according to the value(s) in the table below

      Standard Resistance

      TESTER CONNECTION TESTER CONNECTION CHART

      Tester Connection Condition Specified Condition
      LD-3 (GND) - Body ground Always Below 1 Ω
      LD-9 (SGND) - Body ground Always Below 1 Ω
      LD-8 (SGND) - Body ground Always Below 1 Ω
    3. Fig 2: Identifying LD Connector Of Main Body ECU LH
      G05756247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: Go to Next Step

  3. CHECK HARNESS AND CONNECTOR (MAIN BODY ECU LH - BATTERY)
    1. Disconnect the LM connector from the main body ECU LH (cowl side junction block LH)
    2. Measure the voltage according to the value(s) in the table below

      Standard Voltage

      TESTER CONNECTION TESTER CONNECTION CHART

      Tester Connection Condition Specified Condition
      LD-13(IG) - Body ground Engine switch off Below 1 V
      Engine switch on (IG) 11 to 14 V
      LM-1 (WIG) - Body ground Always 11 to 14 V
    3. Fig 3: Identifying LM Connector Of Main Body ECU LH
      G05756248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE  )
