Parts Location

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

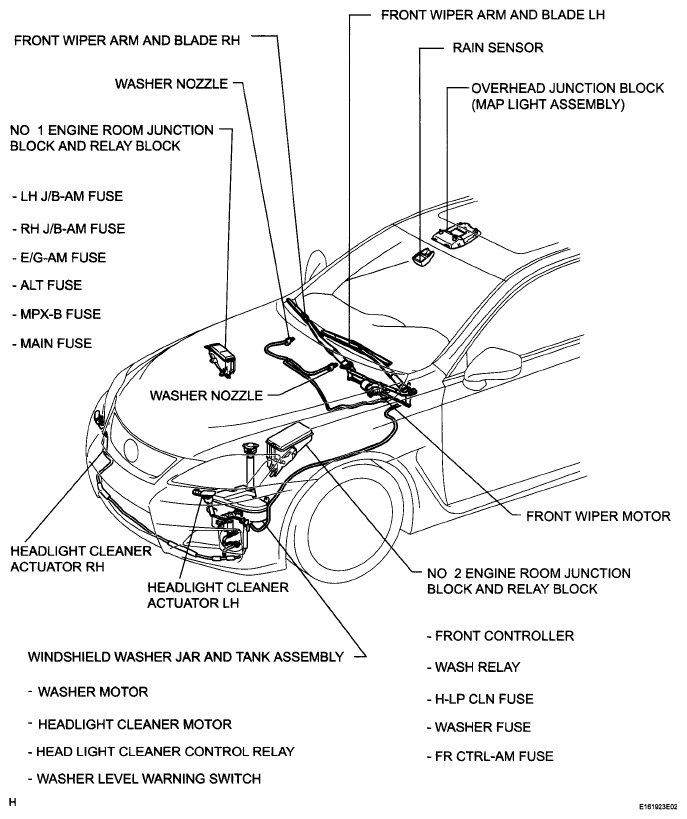

Fig 1: Identifying Wiper And Washer System Parts Location (1 Of 2)
G05756225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

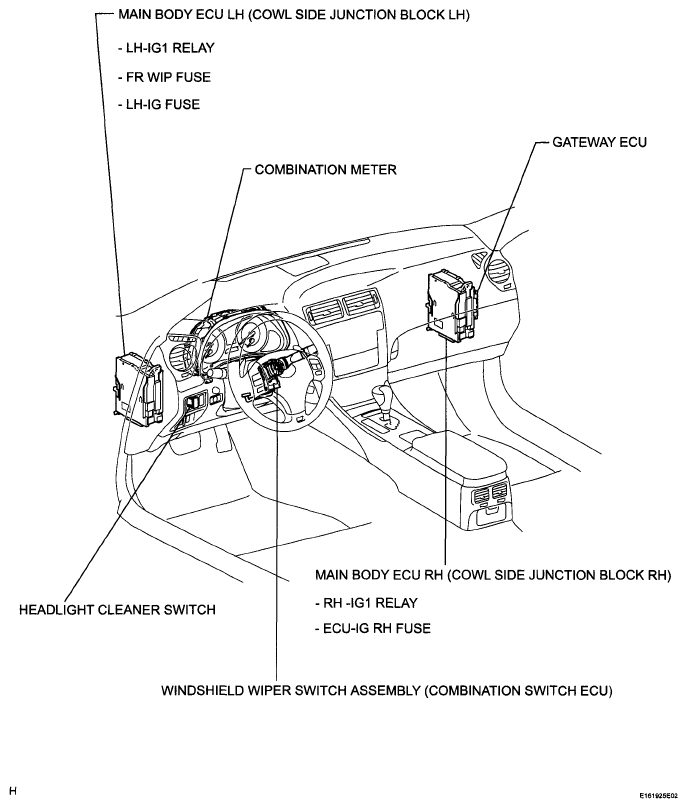

Fig 2: Identifying Wiper And Washer System Parts Location (2 Of 2)
G05756226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
