On-Vehicle Inspection
WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT WASHER NOZZLE
- With the engine running, check the position that the washer fluid hits the windshield.
Standard:

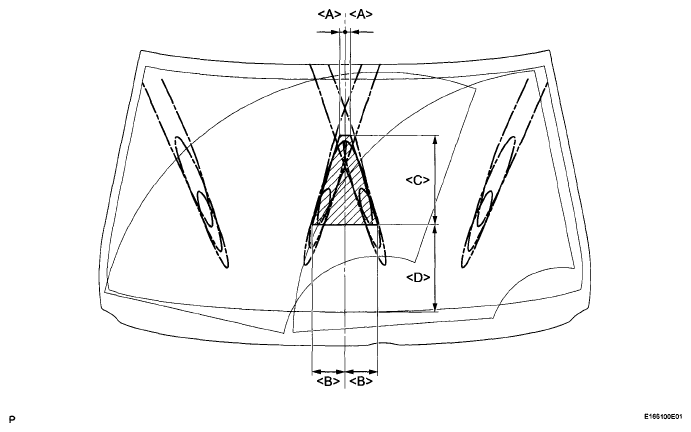

Washer fluid hits the windshield in the areas shown in the illustration.
NOTE: If the result is not as specified, replace the washer nozzle.Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
AREA DIMENSION CHARTArea Dimension A 11 2 mm (0 441 in) B 88 6 mm (3 49 in) C 243 9 mm (9 60 in) D 238 5 mm (9 39 in)
- With the engine running, check the position that the washer fluid hits the windshield.
