Sound Signal Circuit between Radio Receiver and Stereo Jack Adapter: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

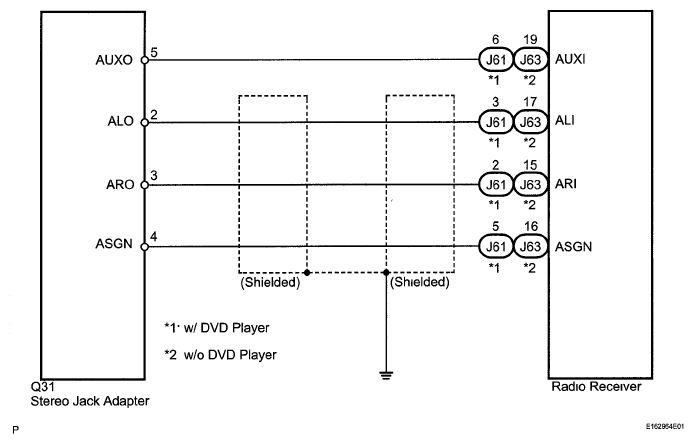

Fig 1: Sound Signal Circuit Between Radio Receiver And Stereo Jack Adapter - Wiring Diagram
G05753358Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
