Rear Suspension Member: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

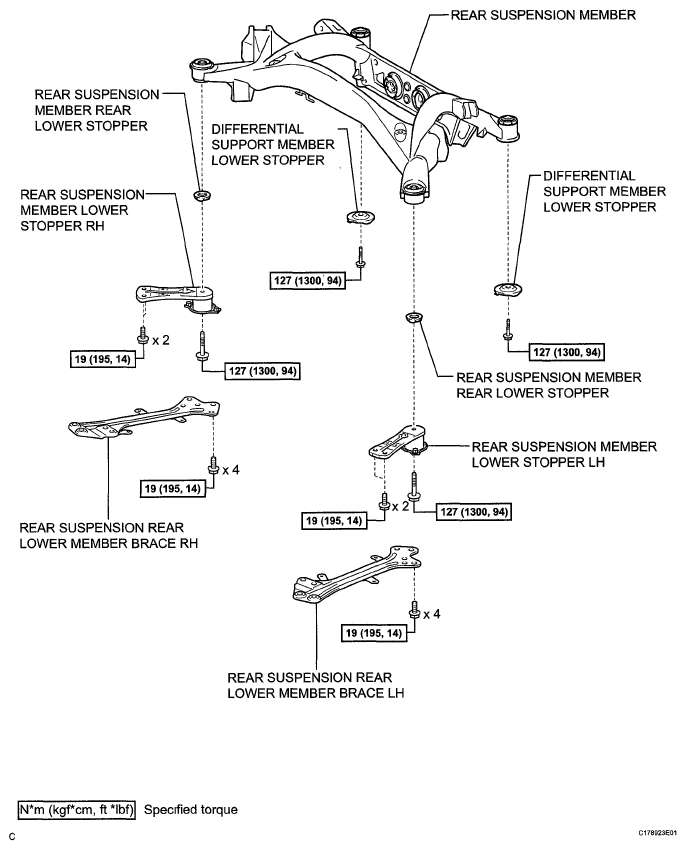

Fig 1: Identifying Rear Suspension Member Components (1 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

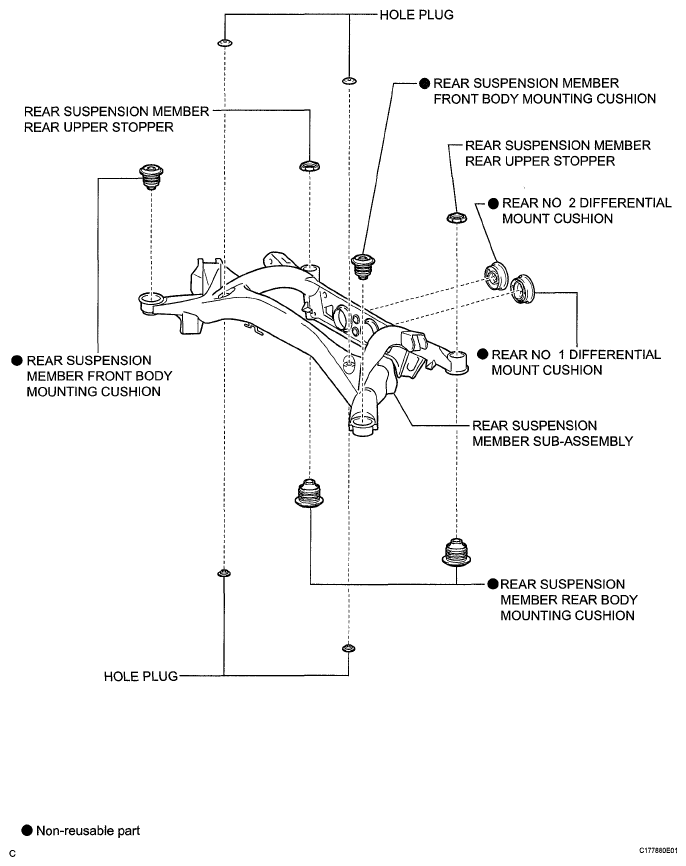

Fig 2: Rear Suspension Member Replacement Components With Torque Specifications (2 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

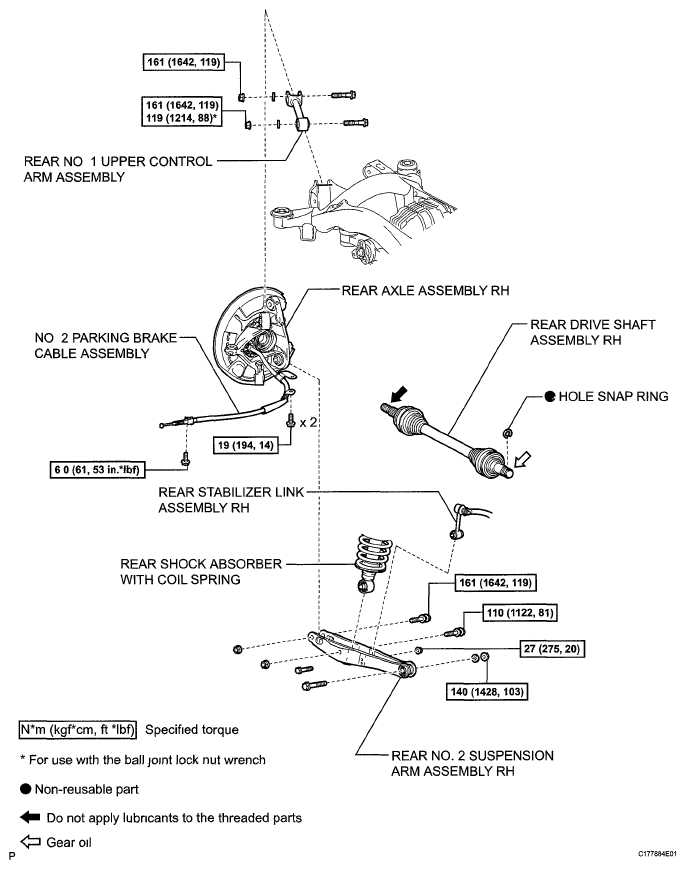

Fig 3: Rear Suspension Member Replacement Components With Torque Specifications (3 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

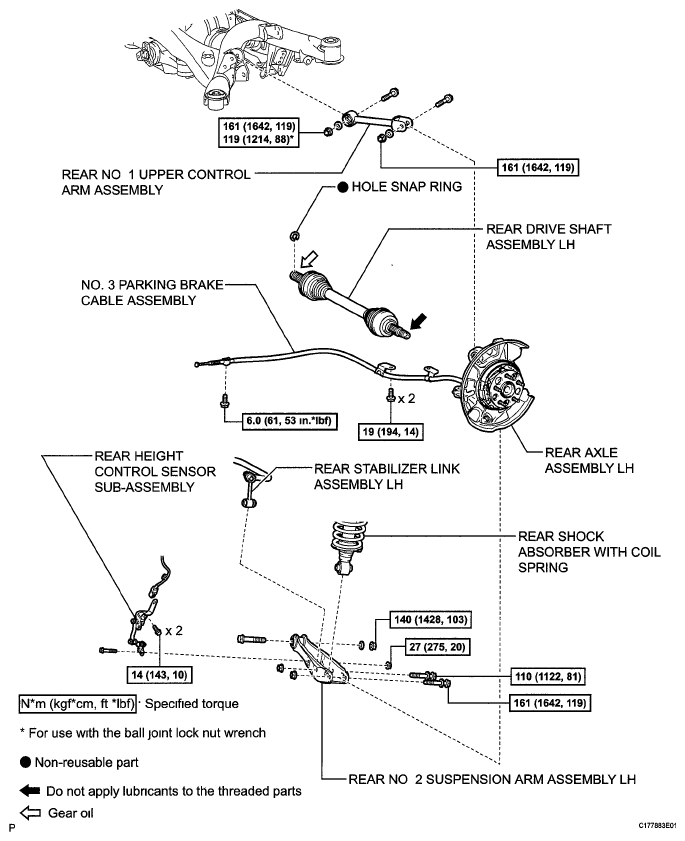

Fig 4: Rear Suspension Member Replacement Components With Torque Specifications (4 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

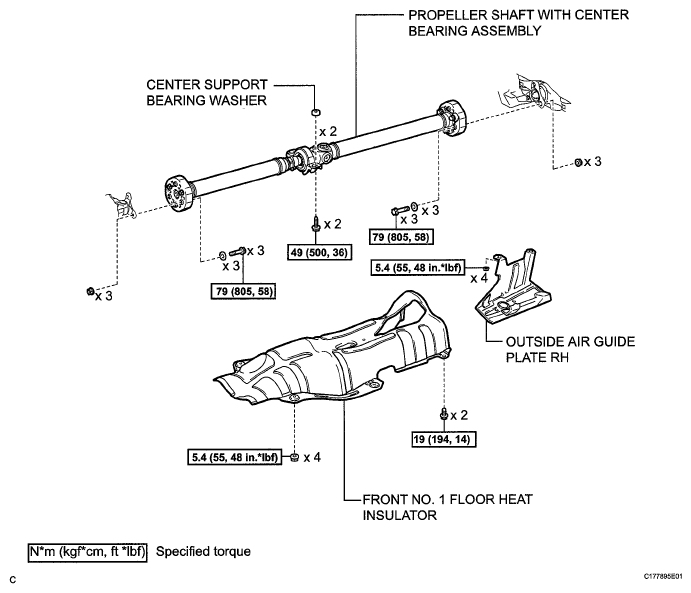

Fig 5: Rear Suspension Member Replacement Components With Torque Specifications (5 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

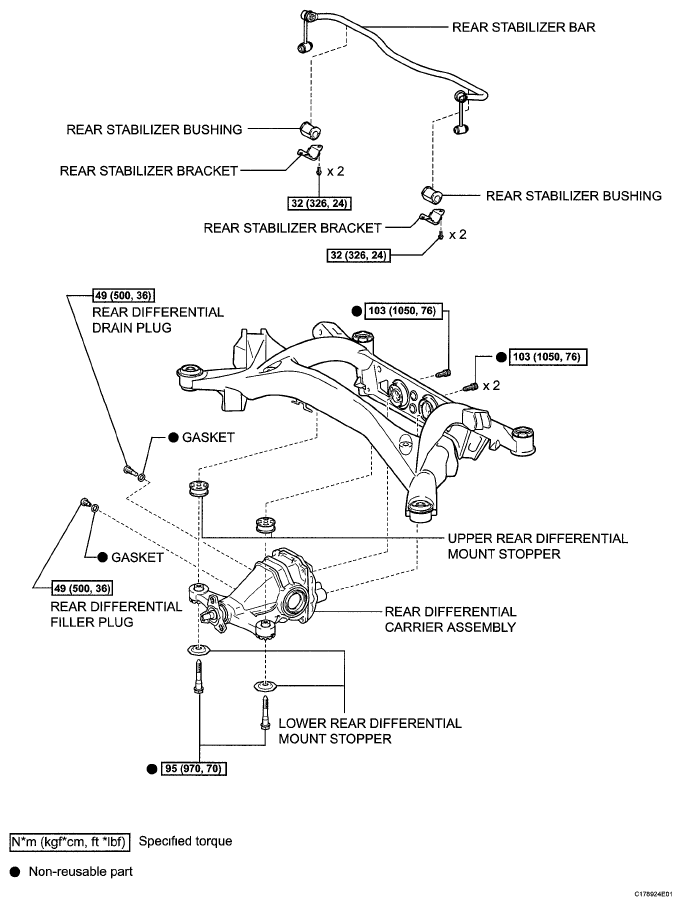

Fig 6: Rear Suspension Member Replacement Components With Torque Specifications (6 Of 10)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Rear Suspension Member Replacement Components With Torque Specifications (7 Of 10)

Fig 8: Rear Suspension Member Replacement Components With Torque Specifications (8 Of 10)

Fig 9: Rear Suspension Member Replacement Components With Torque Specifications (9 Of 10)

Fig 10: Identifying Rear Suspension Member Components (10 Of 10)
