Rear Seat Assembly: Removal

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR SEAT HEADREST ASSEMBLY LH
REMOVE REAR SEAT HEADREST ASSEMBLY RH
REMOVE REAR SEAT CUSHION ASSEMBLY
1. Disengage the 2 front hooks of the rear seat cushion assembly from the vehicle body
  NOTE: Follow the instructions below carefully as the cushion frame deforms easily.
  1. Choose a hook to detach first. Place your hands near the hook as shown in the illustration. Then lift the seat cushion to detach the hook.
  2. Repeat for the other hook.
2. Disengage the 2 rear hooks of the seat cushion from the child restraint seat anchor bracket.
3. Remove the rear seat cushion assembly.

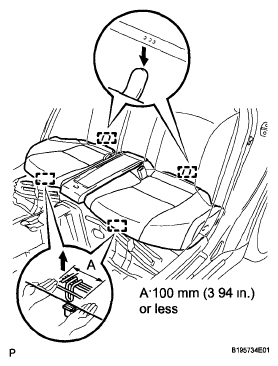

  Fig 1: Removing Rear Seat Cushion Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEATBACK ASSEMBLY
1. Using a screwdriver with the tip tapes, disengage the 2 claws to open the 2 cap of the rear seat shoulder belt guide LH.

  Fig 2: Disengaging Claws To Open Cap Of Rear Seat Shoulder Belt Guide LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver with the tip tapes, disengage the 2 claws to open the 2 caps of the rear seat shoulder belt guide RH.

  Fig 3: Disengaging Claws To Open Caps Of Rear Seat Shoulder Belt Guide RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 4 bolts
4. Disengage the 3 hooks and remove the rear seatback assembly

  Fig 4: Identifying Hooks And Bolts Of Rear Seatback Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
