Rear Seat Assembly: Disassembly

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE REAR SEAT CENTER ARMREST ASSEMBLY
1. Remove the 2 nuts and the rear seat center armrest assembly

  Fig 1: Identifying Rear Seat Center Armrest Assembly Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT CENTER ARMREST CUP HOLDER SUB-ASSEMBLY
1. Remove the 2 bolts
2. Remove the 2 bushes
3. Remove the rear seat center armrest hinge with the 2 rear seat center armrest hinge covers.

  Fig 2: Identifying Rear Seat Center Armrest Hinge Bolts And Bushes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Move the rear seat center armrest cover to the position as shown in the illustration
5. Remove the 2 screws

  Fig 3: Identifying Rear Seat Center Armrest Cover Screw
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Detach the 6 fasteners
7. Disengage the 2 hooks and remove the rear seat center armrest cup holder sub-assembly.
Fig 4: Identifying Fasteners Of Rear Seat Center Armrest Cup Holder Sub-Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT HEADREST SUPPORT

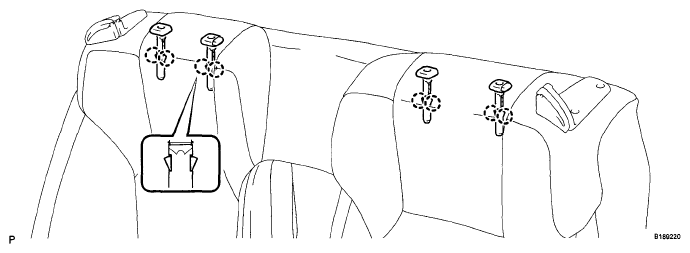

1. Disengage the 8 claws and remove the 4 rear seat headrest supports

  Fig 5: Identifying Claws Of Rear Seat Headrest Supports
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT SHOULDER BELT GUIDE LH
1. Remove the screw (A).
2. Remove the 2 screws (B) and the rear seat shoulder belt guide LH

  Fig 6: Identifying Screws Of Rear Seat Shoulder Belt Guide LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT SHOULDER BELT GUIDE RH
1. Remove the screw (A)
2. Remove the 2 screws (B) and the rear seat shoulder belt guide RH

  Fig 7: Identifying Screws Of Rear Seat Shoulder Belt Guide RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BENCH TYPE REAR SEATBACK COVER

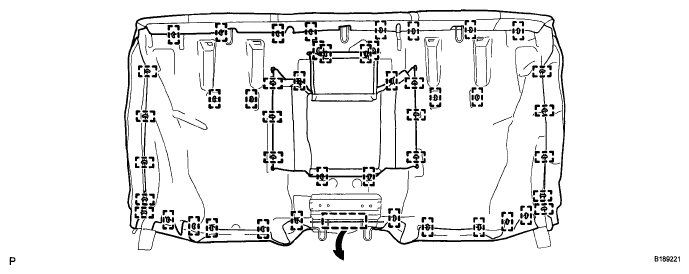

1. Disengage the hook.

  Fig 8: Identifying Bench Type Rear Seatback Cover Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

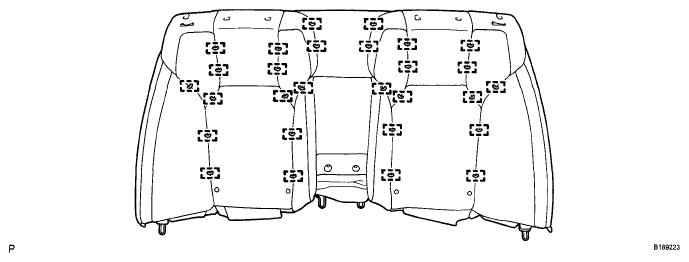

2. Remove the 46 hog rings
3. Remove the 28 hog rings and the bench type rear seatback cover from the bench type rear seatback pad.

  Fig 9: Identifying Bench Type Rear Seatback Cover Hog Rings
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE REAR SEAT UNDER TRAY SUB-ASSEMBLY
1. Disengage the 2 claws.
2. Disengage the 2 hooks and remove the rear seat under tray sub-assembly.

  Fig 10: Identifying Hooks Of Rear Seat Under Tray Sub-Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER LH
1. Disengage the hook.
2. Remove the 21 hog rings.
3. Remove the 6 hog rings and the separate type rear seat cushion cover LH from the separate type rear seat cushion pad sub-assembly

  Fig 11: Identifying Hog Rings Of Separate Type Rear Seat Cushion Cover LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 12: Identifying Hog Rings Of Separate Type Rear Seat Cushion Cover LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER RH
1. Disengage the hook
2. Remove the 20 hog rings
3. Remove the 6 hog rings and the separate type rear seat cushion cover RH from the separate type rear seat cushion pad sub-assembly

  Fig 13: Identifying Hog Ring Of Separate Type Rear Seat Cushion Cover RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Fig 14: Identifying Hog Rings Of Separate Type Rear Seat Cushion Cover RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
