Front Upper Suspension Arm: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Front Upper Suspension Arm Replacement Components (1 Of 2)
G05752238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

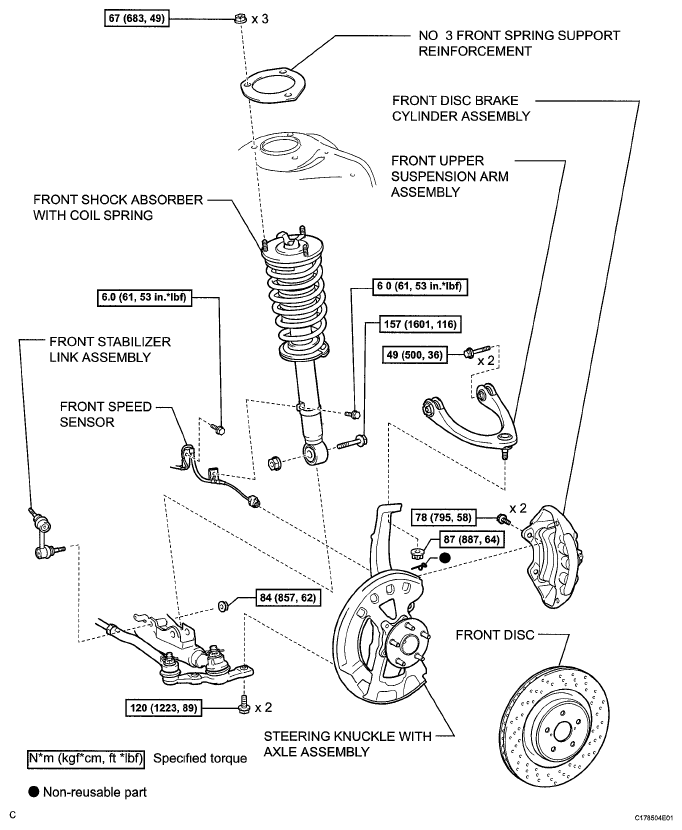

Fig 2: Front Upper Suspension Arm Replacement Components With Torque Specifications (2 Of 2)
G05752274Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
