Front Stabilizer Bar: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Front Stabilizer Bar Replacement Components
G05752305Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

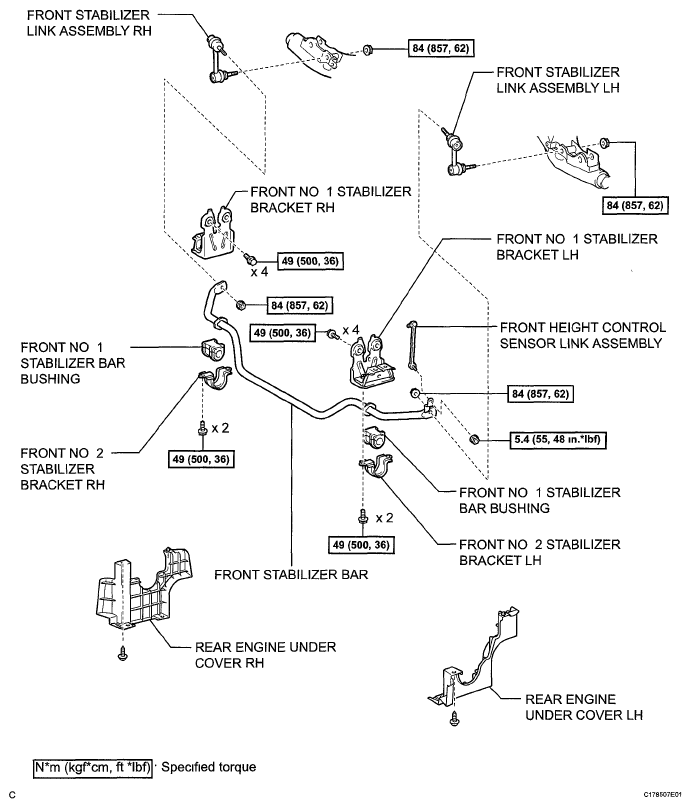

Fig 2: Front Stabilizer Bar Replacement Components With Torque Specifications
G05752306Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
