Propeller Shaft Assembly: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

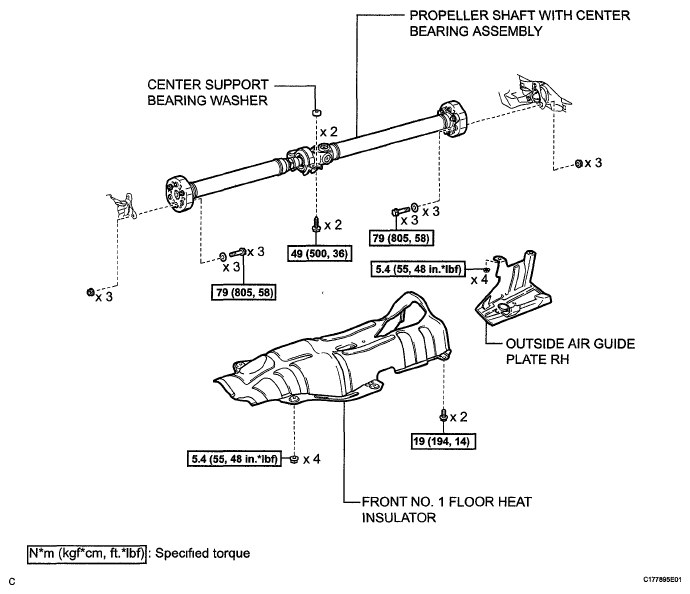

Fig 1: Identifying Propeller Shaft Assembly Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

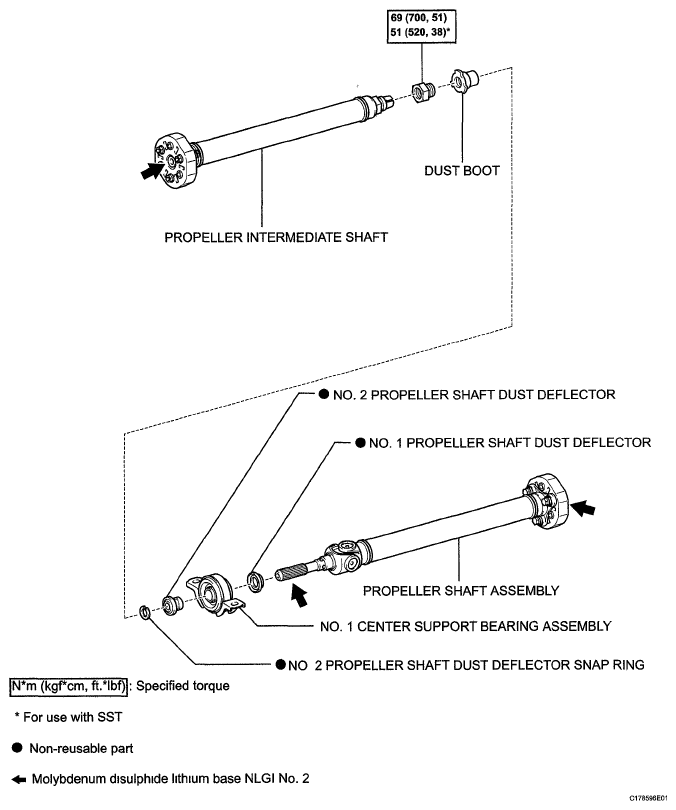

Fig 2: Propeller Shaft Assembly Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Propeller Shaft Assembly Replacement Components With Torque Specifications (3 Of 4)

Fig 4: Propeller Shaft Assembly Replacement Components With Torque Specifications (4 Of 4)
