Steering Gear: Removal

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

PLACE FRONT WHEELS FACING STRAIGHT AHEAD
SECURE STEERING WHEEL

Fig 1: Securing Steering Wheel With Seat Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Secure the steering wheel with the seat belt in order to prevent rotation.
  HINT:

  This operation is useful to prevent damage to the spiral cable.
DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
REMOVE FRONT WHEELS
REMOVE ENGINE UNDER COVER
REMOVE NO. 2 ENGINE UNDER COVER
REMOVE FRONT LOWER SUSPENSION MEMBER PROTECTOR
1. Remove the 4 bolts and the front lower suspension member protector.

  Fig 2: Locating Front Lower Suspension Member Protector Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE STEERING SLIDING YOKE SUB-ASSEMBLY
1. Loosen the bolt (A) and remove the bolt (B), then slide the steering sliding yoke sub-assembly.

  Fig 3: Locating Steering Sliding Yoke Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  NOTE:
  - Do not remove the bolt (A).
  - Do not separate the steering sliding yoke sub-assembly from the power steering gear assembly.
2. Put matchmarks on the steering sliding yoke sub-assembly and the power steering link assembly.

  Fig 4: Identifying Matchmarks On Steering Sliding Yoke And Power Steering Link Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Separate the steering sliding yoke sub-assembly from the power steering link assembly.
SEPARATE TIE ROD END LH
1. Remove the clip and the nut.
2. Install SST to the front lower ball joint.
  SST 09960-20010 (09961-02060)

  NOTE: Make sure that the upper ends of the tie rod end and SST are aligned.

  Fig 5: Locating Front Lower Ball Joint
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, separate the tie rod end from the front lower ball joint

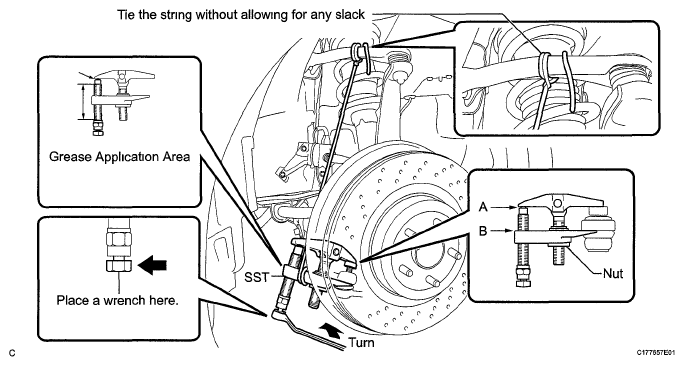

  Fig 6: Separating Tie Rod End From Front Lower Ball Joint
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09960-20010 (09961-02010)

  CAUTION: Apply grease to the bolt threads and the tip of SST.
  NOTE:
  - Be sure to tighten the string firmly to secure SST to the steering knuckle to prevent SST from falling off.
  - Install SST with the center nut so that A and B are parallel. Otherwise, the dust cover may be damaged.
  - Be sure to place a wrench on the part indicated in the illustration.
  - Do not damage the front disc brake dust cover.
  - Do not damage the ball joint dust cover.
  - Do not damage the steering knuckle.
SEPARATE TIE ROD END RH
HINT:

Perform the same procedure as the LH side.
REMOVE POWER STEERING LINK ASSEMBLY
1. Remove the bolt (A) to disconnect the earth wire from the bracket.
2. Remove the 2 clamps to disconnect the wire harness from the bracket
3. Disconnect the 2 connectors (B) and (C) from the power steering gear assembly.
4. Release the lock of the connector (D) and disconnect the connector (D) from the power steering gear assembly

  Fig 7: Identifying Power Steering Link Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Remove the 2 bolts, 2 washers, 2 nuts, and the power steering gear assembly from the front suspension cross member.

  Fig 8: Identifying Power Steering Gear Bolts, Washers And Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
