Spiral Cable: Inspection

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT SPIRAL CABLE

If there are any defects as mentioned below, replace the spiral cable with a new one
Scratches, cracks, dents or chips on the connector or the spiral cable

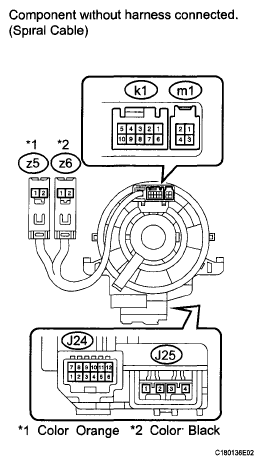

Fig 1: Inspecting Spiral Cable
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Inspect the spiral cable

Measure the resistance according to the value(s) in the table below.

NOTE: To avoid breakage of the spiral cable, do not turn the spiral cable more than necessary.

If the value is not within the specified range, replace the spiral cable.

Standard Resistance

TESTER CONNECTION SPECIFIED CONDITION CHART

Tester Connection	Condition	Specified Condition
k1-1 -J24-8 (HO)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
k1-2-J24-9 (SUP)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
k1-3-J24-10 (SDN)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
k1-4 - J24-11 (DIST)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
k1-5- J24-12 (IL+2)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
k1-6 - J24-2 (ECC)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
k1-7- J24-3 (DISP)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
k1-8 - J24-4 (EAU)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
k1-9 - J24-5 (AU2)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
k1-10 - J24-6 (AU1)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
k1-6 - m1-4	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
m1-1 - J24-7 (R/N)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
m1-3 - J24-1 (CCS)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
m1-4 - J24-2 (ECC)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
z5-1 - J25-2 (D-)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
z5-2 - J25-1 (D+)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
Z6-1 - J25-3 (D2-)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
z6-2 - J25-4 (D2+)	Center	Below 1 Ω
	2 5 rotations to the left
	2 5 rotations to the right
