Seat Position Sensor: Removal

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. PRECAUTION
    CAUTION: Be sure to read Precaution thoroughly before servicing (See PRECAUTION  ).
  2. REMOVE FRONT SEAT ASSEMBLY LH
    1. Remove the front seat assembly LH (See REMOVAL )
  3. REMOVE SEAT POSITION SENSOR
    1. Disconnect the connector.
      NOTE: When disconnecting the airbag connector, take care not to damage the airbag wire harness.
    2. Using a "TORX" socket wrench (T30), remove the "TORX" screw and seat position sensor with the seat position sensor protector

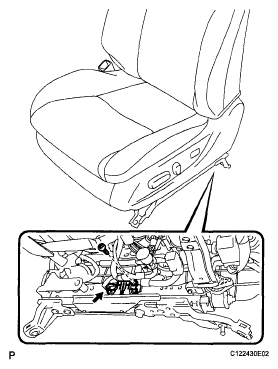

      Fig 1: Locating TORX Screw
      G05757256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the seat position sensor from the seat position sensor protector as shown in the illustration.
      Fig 2: Identifying Seat Position Sensor
      G05757257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
