SRS Warning Light does not Come ON: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

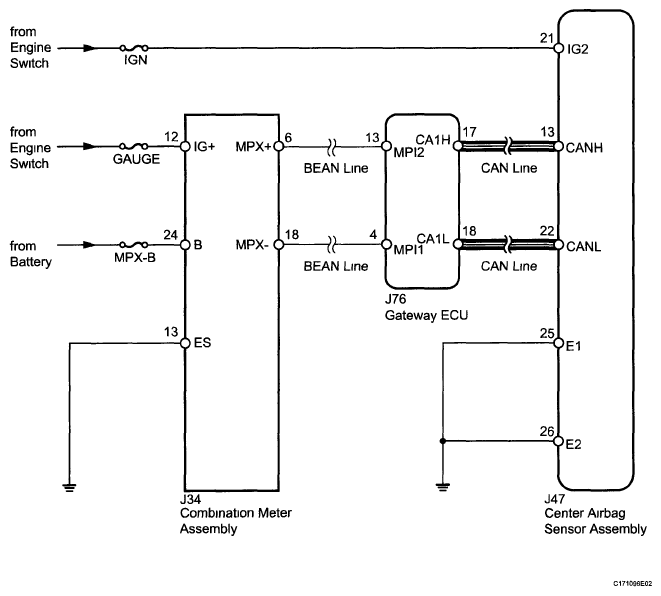

Fig 1: SRS Warning Light Does Not Come ON - Wiring Diagram
G05757092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
