DTC B1865/65 Short in Front Passenger Side Knee Airbag Squib Circuit; DTC B1866/65 Open in Front Passenger Side Knee Airbag Squib Circuit; DTC B1867/65 Short to GND in Front Passenger Side Knee Airbag Squib Circuit; DTC B1868/65 Short to B+ in Front Passenger Side Knee Air-bag Squib Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

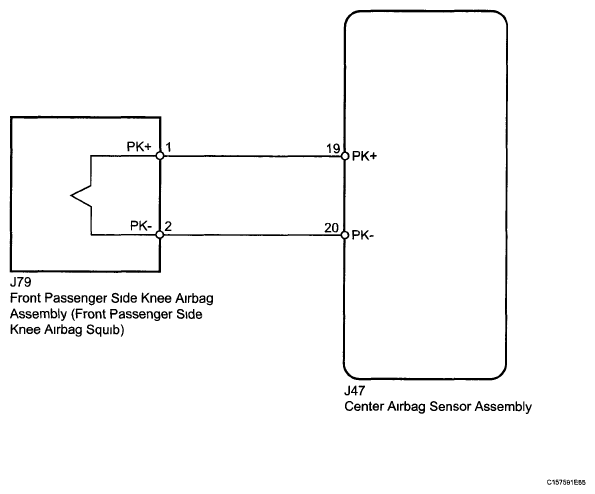

Fig 1: Short In Front Passenger Side Knee Airbag Squib Circuit - Wiring Diagram
G05757063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
