DTC C1528: Motor Rotation Angle Sensor Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

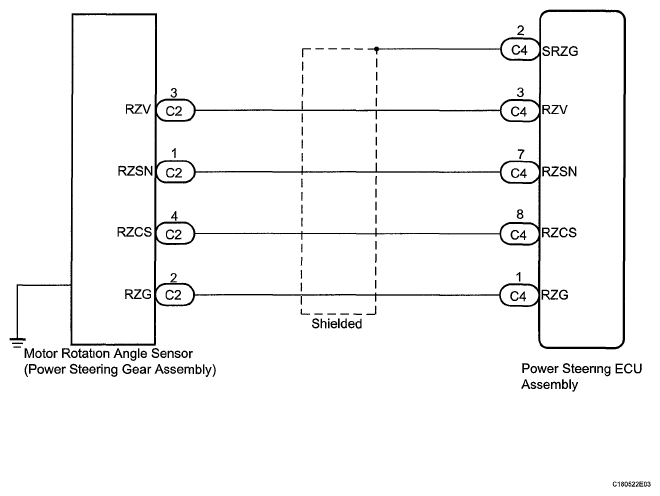

Fig 1: Motor Rotation Angle Sensor Malfunction Wiring Diagram
G05752937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
