ULTRASONIC SENSOR (for Rear Side): Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

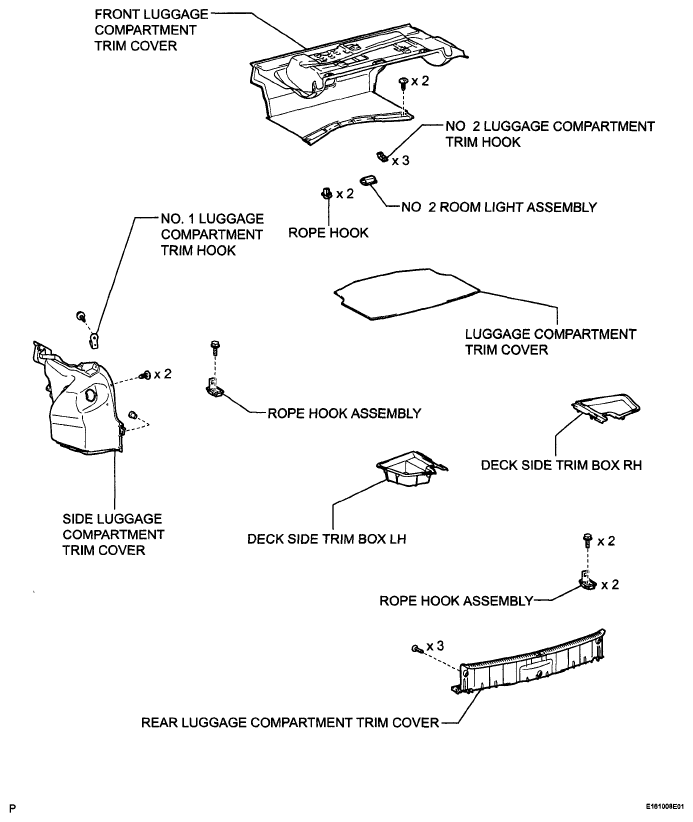

Fig 1: Identifying Ultrasonic Sensor Replacement Components (For Rear Side) (1 Of 2)
G05753875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

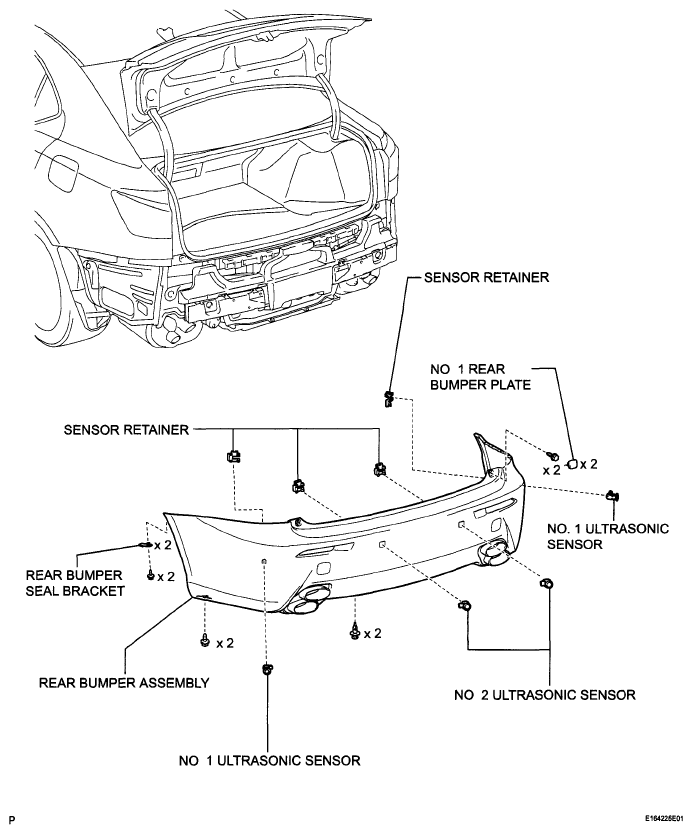

Fig 2: Identifying Ultrasonic Sensor Components (For Rear Side) (2 Of 2)
G05753876Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
