Operation Check

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. SELF-CHECK FUNCTION INSPECTION
    1. Turn the engine switch on (IG).
    2. When the intuitive parking assist system is turned on, check that the following occurs: 1) after approximately 0.1 seconds, the buzzer sounds for 0.8 +/- 0.3 seconds, and 2) the system starts the obstacle detection operation.

      HINT

      • If a sensor has an open circuit or a sensor malfunctions because it is wet or frozen, a malfunction display is shown in the multi-information display or multi-display, and the buzzer sounds.
      • When the sensor condition returns to normal, the system returns to normal clearance sonar mode.
      • If the satellite switch (clearance sonar main switch) is on and the engine switch is turned on (IG), the buzzer does not sound.
        Fig 1: Buzzer Sound Pattern
        G05753786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. MALFUNCTION DISPLAY (MULTI-INFORMATION DISPLAY)
    1. Ultrasonic sensor open circuit
      1. If there is an open circuit between the ultrasonic sensor and the clearance warning ECU or a sensor is malfunctioning, the malfunction is displayed as shown in the illustration.

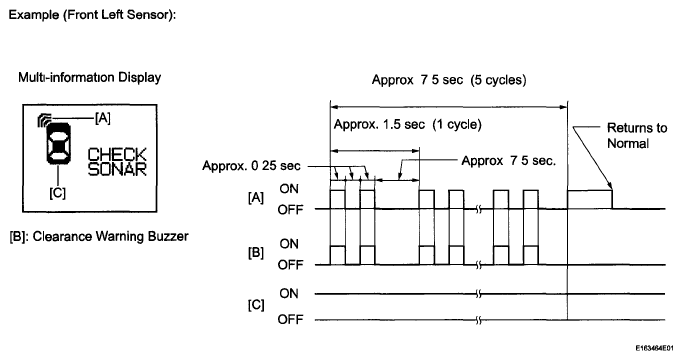

        Fig 2: Driving Pattern (Ultrasonic Sensor Open Circuit)
        G05753787Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT

        • The example shows an open circuit in the ultrasonic sensor (front left sensor)
        • If a sensor has an open circuit, refer to PROBLEM SYMPTOMS  stating "Open circuit is displayed during self-check function" Table to inspect it.
    2. Ultrasonic sensor frozen
      1. If a sensor is covered with foreign matter, such as mud or snow, the affected sensor is displayed as shown in the illustration.

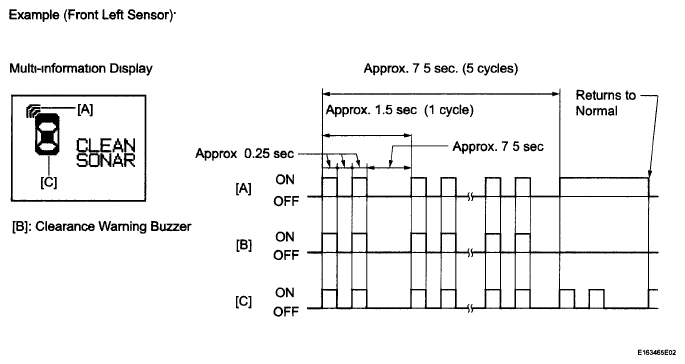

        Fig 3: Driving Pattern (Ultrasonic Sensor Frozen)
        G05753788Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT

        • The example shows that the ultrasonic sensor (front left sensor) is covered with foreign matter.
        • If "CLEAN SONAR" is displayed, cleaning the foreign matter from the sensor will return the sensor to normal.
  3. MALFUNCTION DISPLAY (MULTI-DISPLAY)
    1. Ultrasonic sensor open circuit
      1. If there is an open circuit between the ultrasonic sensor and the clearance warning ECU or a sensor is malfunctioning, the malfunction is displayed as shown in the illustration.
        Fig 4: Identifying Screen Display (Example (Rear Right Sensor))
        G05753789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        • This example shows an open circuit in the ultrasonic sensor (rear right sensor).
        • If a sensor has an open circuit, refer to PROBLEM SYMPTOMS  that states "Open circuit is displayed during self-check function" to inspect it
    2. Ultrasonic sensor frozen
      1. If a sensor is covered with foreign matter, such as mud or snow, the affected sensor is displayed as shown in the illustration
        Fig 5: Identifying Screen Display (Example (Front Left Sensor))
        G05753790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT

        • The example shows that the ultrasonic sensor (front left sensor) is covered with foreign matter.
        • If "Clean Sonar" is displayed, cleaning the foreign matter from the sensor will return the sensor to normal.
  4. DETECTION RANGE MEASUREMENT AND DISPLAY INSPECTION
    1. Detection range measurement
      NOTE: Make sure the vehicle does not move by applying the parking brake firmly.
      1. Turn the engine switch on (IG).
      2. Move the shift lever to R to check the ultrasonic sensors (rear sensors).
    2. Turn the satellite switch (clearance sonar main switch) on
    3. Move a 60 mm (2.36 in.) pole near each sensor to measure its detection range.
      NOTE: These detection ranges are applicable when positioning the 60 mm (2.36 in.) pole parallel or perpendicular to the ground. The ranges vary depending on the measuring method and type of obstacle (such as walls).
      1. Clearance Sonar

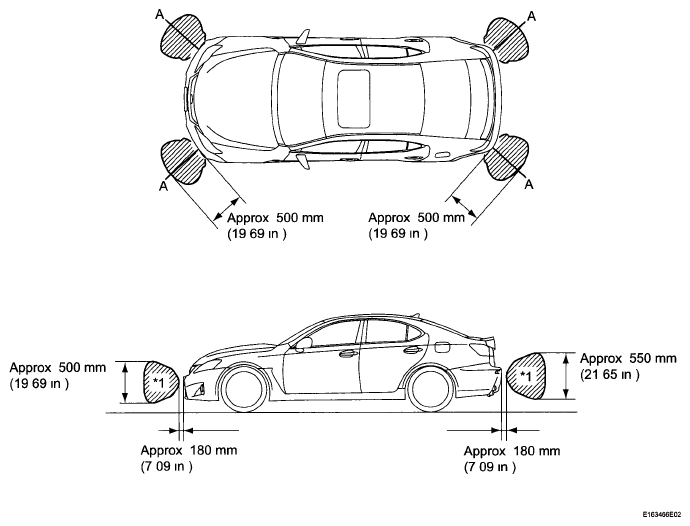

        Fig 6: Inspecting Detection Range (Clearance Sonar)
        G05753791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        NOTE: The No. 1 ultrasonic sensor side view detection range's hatched area (labeled *1) represents the cross section of the top view detection range's A lines. The hatched area *1 does not represent the entire side view detection range.
      2. Back Sonar

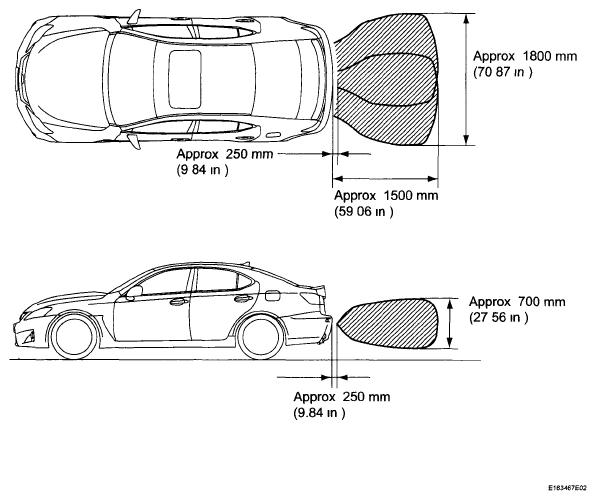

        Fig 7: Inspecting Detection Range (Back Sonar)
        G05753792Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. When the ultrasonic sensors (front clearance sonar) have detected an obstacle, check the displays and buzzer sounds

      Operation Condition

      OPERATION CONDITION

      Engine Switch Clearance Sonar Main Switch Shift Lever Position Vehicle Speed
      On (IG) ON In any position except P 6 mph (10 km/h) or less

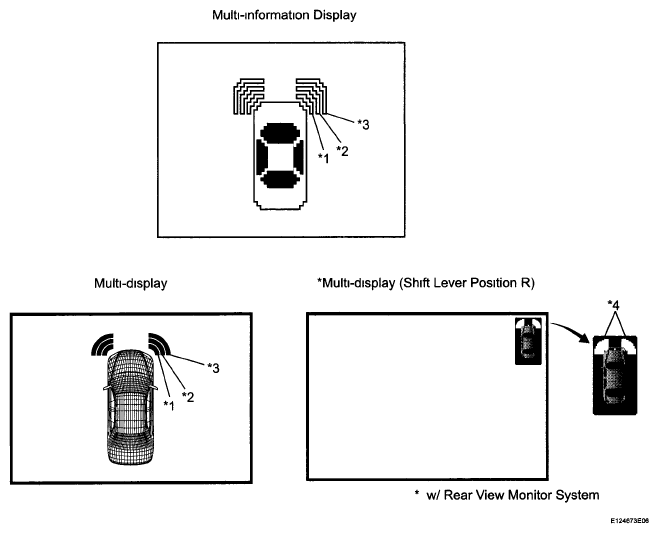

      Fig 8: Identifying Monitor Display
      G05753793Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

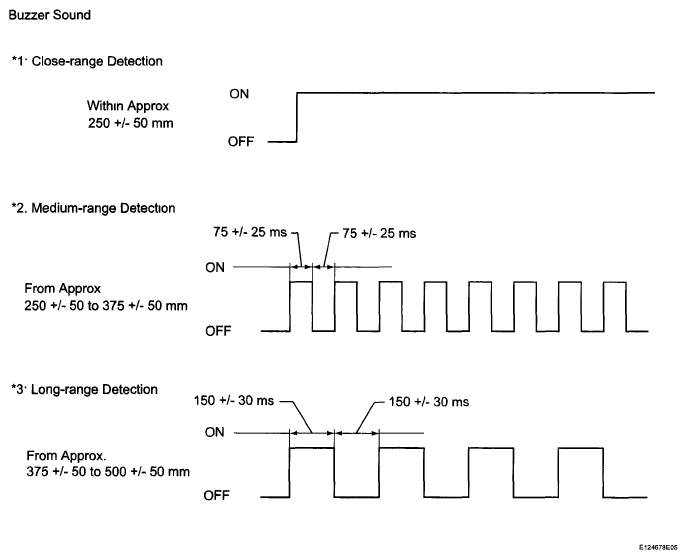

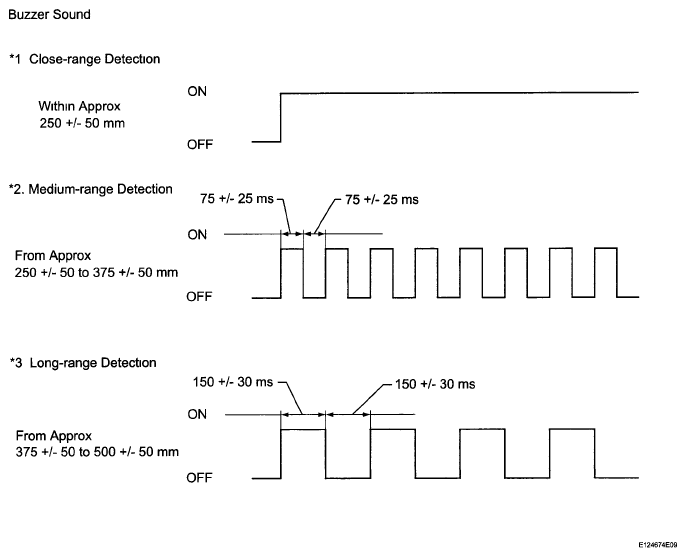

      Fig 9: Driving Pattern (Buzzer Sound)
      G05753794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard

      Multi-information Display (Shift Lever Position except P)

      DETECTION RANGE

      Detection Range During Judgment
      *1
      Close-range detection
      Within approx. 250 +/- 50 mm (9 84 +/-1.97 in.)      		 Buzzer Sounds continuously
      Number of bars displayed: 1 (blinking)
      No steering guide mark
      *2
      Medium-range detection
      From approx. 250 +/- 50 to 375 +/- 50 mm (9.84 +/-1.97 to 14.76 +/-1.97 in.)      		 Buzzer. Sounds intermittently (ON. 75 ms / OFF 75 ms)
      Number of bars displayed: 2 (illuminated)
      No steering guide mark
      *3
      Long-range detection
      From approx. 375 +/- 50 to 500 +/- 50 mm (14 76 +/-1.97 to 19.69 +/ -1.97 in.)      		 Buzzer: Sounds intermittently (ON: 150 ms / OFF. 150 ms)
      Number of bars displayed: 3 (illuminated)
      No steering guide mark

      Multi-display (Shift Lever Position except P)

      DETECTION RANGE

      Detection Range During Collision Judgment
      *1
      Close-range detection
      Within approx. 250 +/- 50 mm (9.84 +/-1.97 in.)      		 Buzzer. Sounds continuously
      Number of bars displayed: 1 (red illumination)
      No steering guide mark
      *2
      Medium-range detection
      From approx. 250 +/- 50 to 375 +/- 50 mm (9.84 +/-1.97 to 14.76 +/-1.97 in.)      		 Buzzer. Sounds intermittently (ON. 75 ms / OFF: 75 ms)
      Number of bars displayed 2 (yellow illumination)
      No steering guide mark
      *3
      Long-range detection
      From approx. 375 +/- 50 to 500 +/- 50 mm (14.76 +/-1.97 to 19.69 +/ -1.97 in.)      		 Buzzer: Sounds intermittently (ON: 150 ms / OFF: 150 ms)
      Number of bars displayed: 3 (yellow illumination)
      No steering guide mark

      w/ Rear View Monitor (Shift Lever Position R)

      DETECTION RANGE

      Detection Range During Collision Judgment
      *1
      Close-range detection
      Within approx. 250 +/. 50 mm (9.84 +/-1.97 in.)      		 Buzzer: Sounds continuously
      *4: Illumination (red)
      *2
      Medium-range detection
      From approx. 250 +/- 50 to 375 +/- 50 mm (9.84 +/-1.97 to 14.76 +/-1.97 in.)      		 Buzzer: Sounds intermittently (ON: 75 ms / OFF: 75 ms)
      *4: Blinking (yellow)
      *3
      Long-range detection
      From approx. 375 +/- 50 to 500 +/- 50 mm (14.76 +/-1.97 to 19.69 +/ -1.97 in.)      		 Buzzer: Sounds intermittently (ON: 150 ms / OFF: 150 ms)
      *4: Blinking (yellow)

      HINT

      • Ultrasonic waves are used to measure the detection range, however, the detection range may vary depending on the ambient temperature.
    5. When the ultrasonic sensors (back sonar) have detected an obstacle, check the display and buzzer sounds

      Operation Condition

      OPERATION CONDITION

      Engine Switch Clearance Sonar Main Switch Shift Lever Position Vehicle Speed
      On (IG) ON R 6 mph (10 km/h) or less

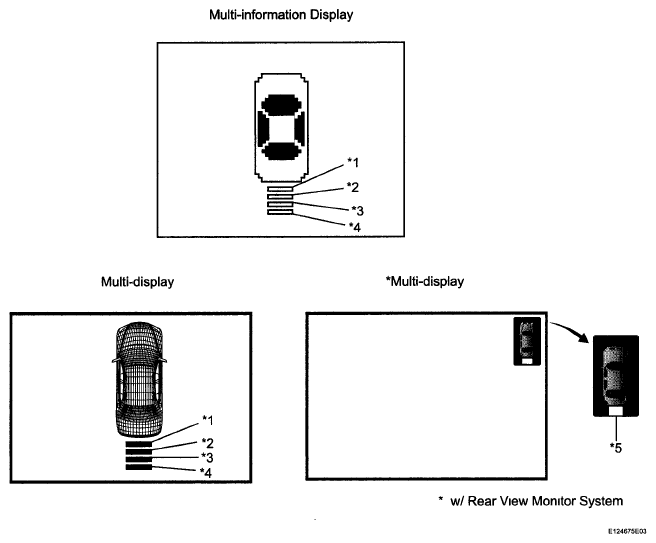

      Fig 10: Identifying Monitor Display (Shift Lever Position Except P)
      G05753795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

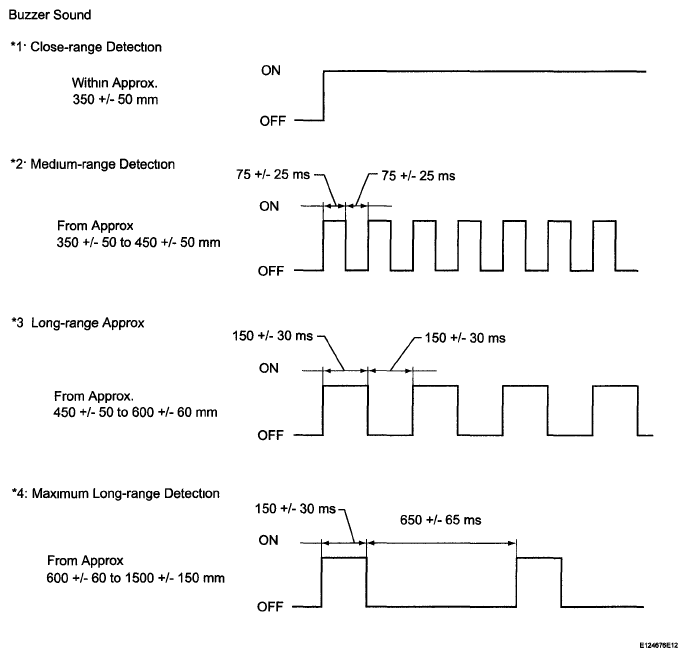

      Fig 11: Driving Pattern (Buzzer Sound)
      G05753796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard

      Multi-information Display (Shift Lever Position R)

      DETECTION RANGE

      Detection Range During Detection
      *1
      Close-range detection
      Within approx 350 +/- 50 mm (13.78 +/-1.97 in.)      		 Buzzer: Sounds continuously
      Number of bars displayed: 1 (blinking)
      *2
      Medium-range detection
      From approx. 350 +/- 50 to 450 +/- 50 mm (13.78 +/-1.97 to 17.72 +/ -1.97 in.)      		 Buzzer: Sounds intermittently (ON: 75 ms / OFF: 75 ms)
      Number of bars displayed: 2 (illuminated)
      *3
      Long-range detection
      From approx. 450 +/- 50 to 600 +/- 60 mm (17.72 +/-1.97 to 23.62 +/ - 2.36 in.)      		 Buzzer: Sounds intermittently (ON: 150 ms / OFF: 150 ms)
      Number of bars displayed: 3 (illuminated)
      *4
      Maximum long-range detection
      From approx. 600 +/- 60 to 1500 +/-150 mm (23.62 +/- 2.36 to 59.06 +/- 5.91 in.)      		 Buzzer: Sounds intermittently (ON: 150 ms / OFF. 650 ms)
      Number of bars displayed: 4 (illuminated)

      Multi-display (Shift Lever Position R)

      DETECTION RANGE

      Detection Range During Collision Judgment
      *1
      Close-range detection
      Within approx. 350 +/- 50 mm (13 78 +/-1.97 in.)      		 Buzzer: Sounds continuously
      Number of bars displayed: 1 (red illumination)
      *2
      Medium-range detection
      From approx 350 +/- 50 to 450 +/- 50 mm (13.78 +/-1.97 to 17.72 +/ -1.97 in.)      		 Buzzer: Sounds intermittently (ON. 75 ms / OFF: 75 ms)
      Number of bars displayed: 2 (yellow illumination)
      *3
      Long-range detection
      From approx. 450 +/- 50 to 600 +/- 60 mm (17.72 +/-1.97 to 23.62 +/ -2.36 in.)      		 Buzzer: Sounds intermittently (ON: 150 ms / OFF: 150 ms)
      Number of bars displayed: 3 (yellow Illumination)
      *4
      Maximum long-range detection
      From approx. 600 +/- 60 to 1500 +/-150 mm (23.62 +/- 2.36 to 59.06 +/- 5.91 in.)      		 Buzzer: Sounds intermittently (ON: 150 ms / OFF: 650 ms)
      Number of bars displayed: 4 (yellow illumination)

      w/ Rear View Monitor (Shift Lever Position R)

      DETECTION RANGE

      Detection Range During Collision Judgment
      *1
      Close-range detection
      Within approx. 350 +/- 5 mm (13.78 +/-1.97 in.)      		 Buzzer: Sounds continuously
      *5. Illumination (red)
      *2
      Medium-range detection
      From approx. 350 +/- 50 to 450 +/- 50 mm (13.78 +/-1.97 to 17.72 +/ -1 97 in)      		 Buzzer: Sounds intermittently (ON. 75 ms / OFF: 75 ms)
      *5: Blinking (yellow)
      *3
      Long-range detection
      From approx. 450 +/- 50 to 600 +/- 50 mm (17 72 +/-1.97 to 23.62 +/ -1.97 in.)      		 Buzzer: Sounds intermittently (ON: 150 ms / OFF: 150 ms)
      *5: Blinking (yellow)
      *4
      Maximum long-range detection
      From approx. 600 +/- 50 to 1500 mm (23.62 +/-1.97 to 59.06 in)      		 Buzzer: Sounds intermittently (ON: 150 ms / OFF: 650 ms)
      *5: Blinking (yellow)

      HINT

      Ultrasonic waves are used to measure the detection range, however, the detection range may vary depending on the ambient temperature.

    6. When the ultrasonic sensors (rear clearance sonar) have detected an obstacle, check the display and buzzer sounds

      Operation Condition

      OPERATION CONDITION

      Engine Switch Clearance Sonar Main Switch Shift Lever Position Vehicle Speed
      On (IG) ON R 6 mph (10 km/h) or less

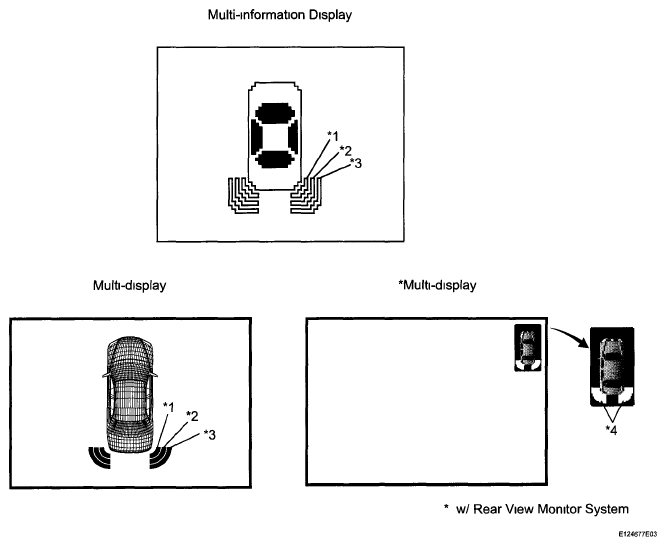

      Fig 12: Identifying Monitor Display (Shift Lever Position R)
      G05753797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 13: Driving Pattern (Buzzer Sound)
      G05753798Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard

      Multi-information Display (Shift Lever Position R)

      DETECTION RANGE

      Detection Range During Detection
      *1
      Close-range detection
      Within approx. 250 +/- 50 mm (9.84 +/-1.97 in.)      		 Buzzer* Sounds continuously
      Number of bars displayed: 1 (blinking)
      *2
      Medium-range detection
      From approx. 250 +/- 50 to 375 +/- 50 mm (9.84 +/-1.97 to 14.76 +/-1.97 in.)      		 Buzzer: Sounds intermittently (ON 75 ms / OFF 75 ms)
      Number of bars displayed: 2 (illuminated)
      *3
      Long-range detection
      From approx. 375 +/- 50 to 500 +/- 50 mm (14.76 +/-1.97 to 19.69 +/ -1.97 in.)      		 Buzzer: Sounds intermittently (ON: 150 ms / OFF: 150 ms)
      Number of bars displayed: 3 (illuminated)

      Multi-display (Shift Lever Position R)

      DETECTION RANGE

      Detection Range During Collision Judgment
      *1
      Close-range detection
      Within approx. 250 +/- 50 mm (9.84 +/-1.97 in.)      		 Buzzer: Sounds continuously
      Number of bars displayed: 1 (red illumination)
      *2
      Medium-range detection
      From approx. 250 +/- 50 to 375 +/- 50 mm (9.84 +/-1.97 to 14.76 +/-1.97 in.)      		 Buzzer: Sounds intermittently (ON: 75 ms / OFF 75 ms)
      Number of bars displayed: 2 (yellow illumination)
      *3
      Long-range detection
      From approx. 375 +/- SO to 500 +/- 50 mm (14.76 +/-1.97 to 19.69 +/ -1.97 in.)      		 Buzzer: Sounds intermittently (ON: 150 ms / OFF: 150 ms)
      Number of bars displayed: 3 (yellow illumination)

      w/ Rear View Monitor (Shift Lever Position R)

      DETECTION RANGE

      Detection Range During Collision Judgment
      *1
      Close-range detection
      Within approx. 250 +/- 50 mm (9.84 +/- 1.97 in.)      		 Buzzer: Sounds continuously
      *4: Illumination (red)
      *2
      Medium-range detection
      From approx. 250 +/- 50 to 375 +/- 50 mm (9.84 +/-1.97 to 14.76 +/-1.97 in)      		 Buzzer. Sounds intermittently (ON: 75 ms / OFF: 75 ms)
      *4: Blinking (yellow)
      *3
      Long-range detection
      From approx. 375 +/- 50 to 500 +/- 50 mm (14.76 +/-1.97 to 19.69 +/ -1.97 in.)      		 Buzzer: Sounds intermittently (ON: 150 ms / OFF: 150 ms)
      *4: Blinking (yellow)

      HINT

      Ultrasonic waves are used to measure the detection range, however, the detection range may vary depending on the ambient temperature.
