Section 28 (Heating / Air Conditioning System)
>>
Air Conditioning System
>>
Parts Location
Parts Location
WARNING:
This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

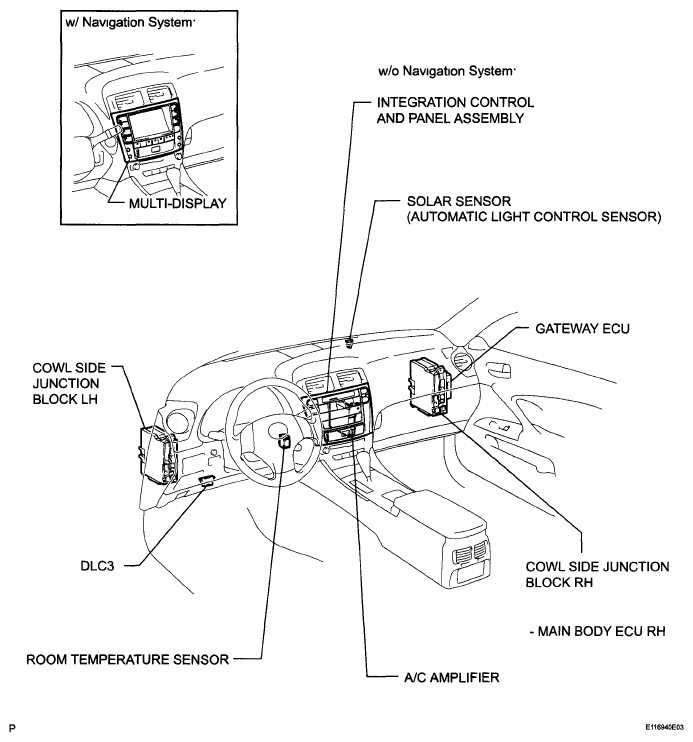

Fig 1: Identifying Air Conditioning System Components (1 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

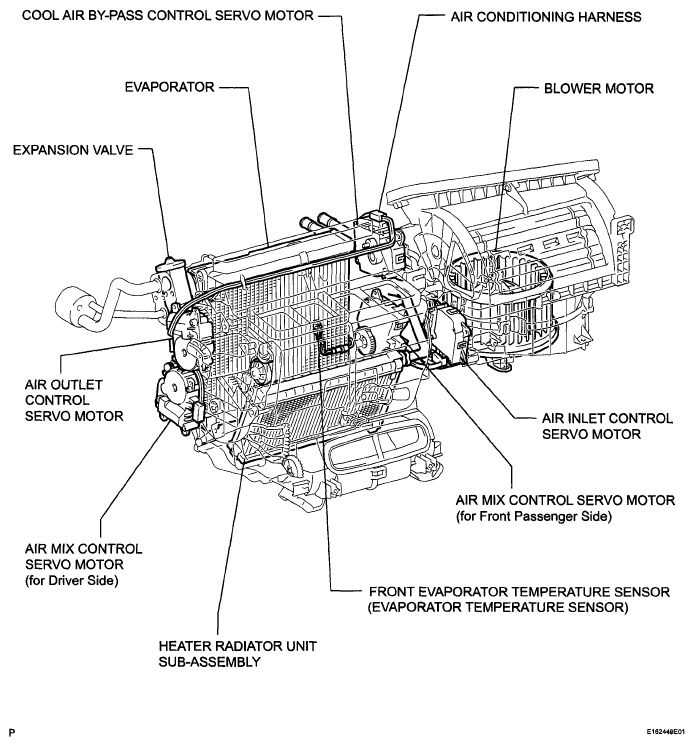

Fig 2: Identifying Air Conditioning System Components (2 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

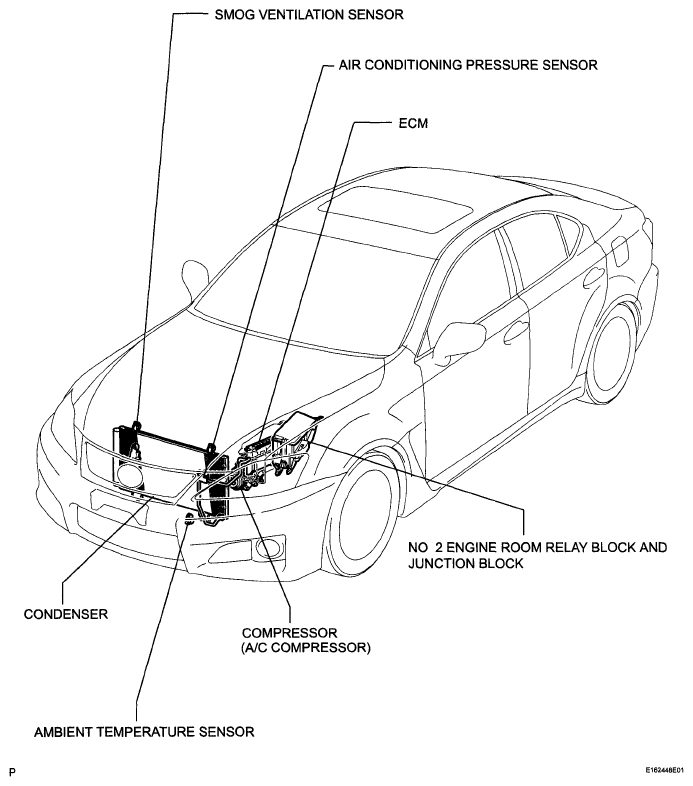

Fig 3: Identifying Air Conditioning System Components (3 Of 3)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
