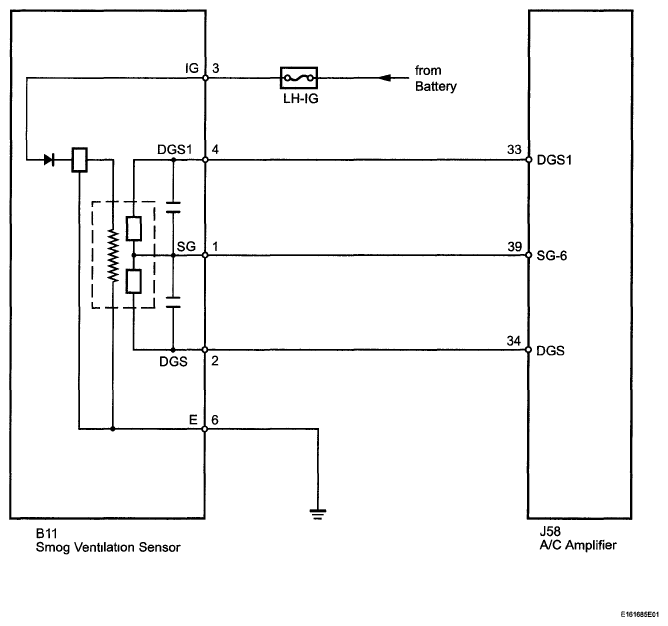

DTC B1418/18 Exhaust Gas Sensor Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
