FUEL PUMP (for High Pressure): Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Fuel Pressure Pulsation Damper Replacement Components - For Direct Injection (2 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

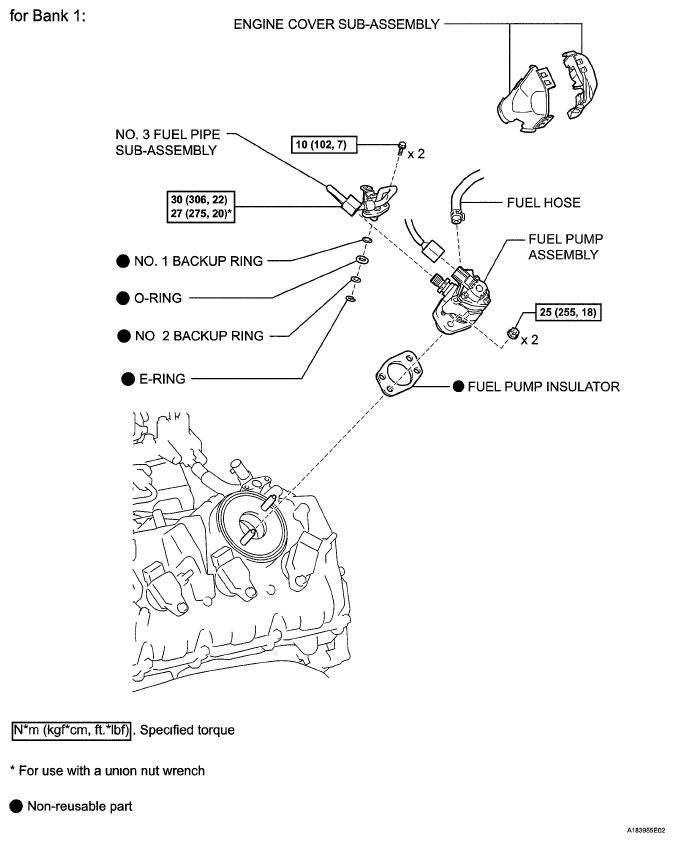

Fig 2: Fuel Pump Replacement Components With Torque Specifications (2 Of 3)

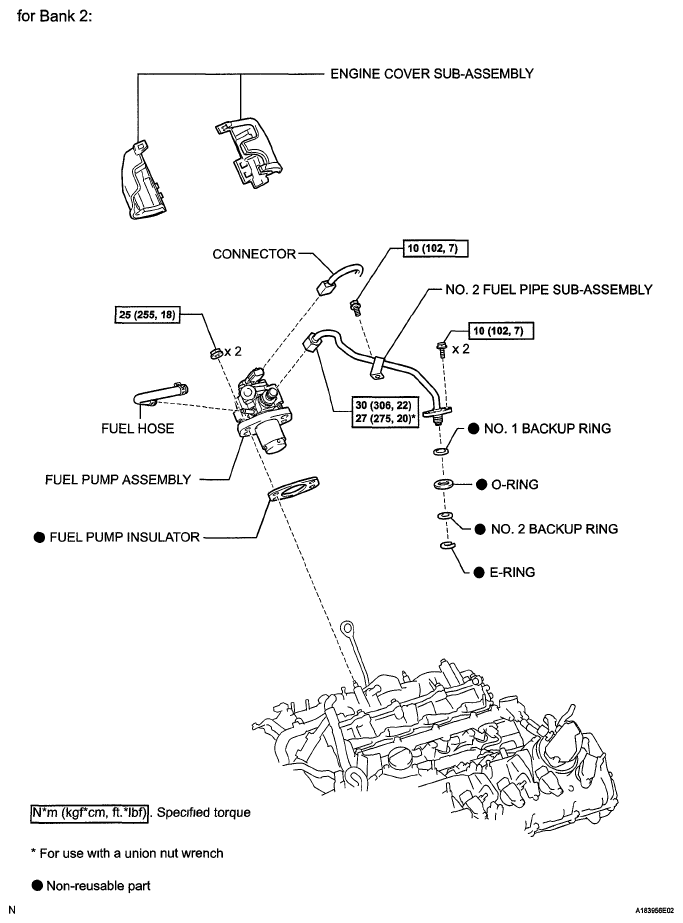

Fig 3: Fuel Pump Replacement Components With Torque Specifications (3 Of 3)
