FUEL PRESSURE PULSATION DAMPER (for Port Injection): Installation

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL FUEL PRESSURE PULSATION DAMPER ASSEMBLY (for Port Injection)
    1. Temporarily install the 2 fuel pressure pulsation damper assemblies together with 4 new gaskets and the fuel tube sub-assembly
    2. Using SST, tighten the 2 fuel pressure pulsation damper assemblies

      SST 09612-24014 (09617-24011)

      Torque: without SST

      40 N*m (408 kgf*cm, 30 ft.*lbf)

      with SST

      35 N*m (357 kgf*cm, 26 ft.*lbf)

      HINT.

      • Use a torque wrench with a fulcrum length of 30 cm (11.81 in).
      • Make sure that SST and the wrench are connected in a straight line.

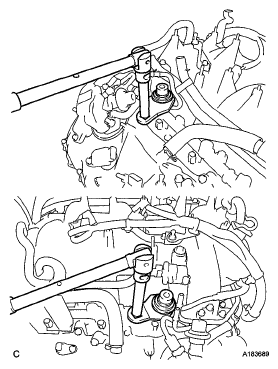

      Fig 1: Tightening Fuel Pressure Pulsation Damper Assemblies
      G05750012Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the wire harness with the 2 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    4. Connect the 4 connectors

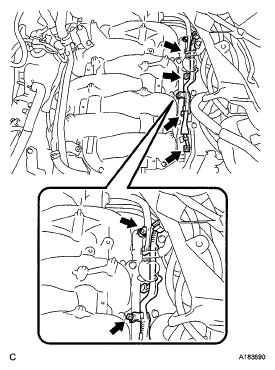

      Fig 2: Locating Wire Harness Bolts And Connectors
      G05750010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Install the wire harness with the 2 bolts

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

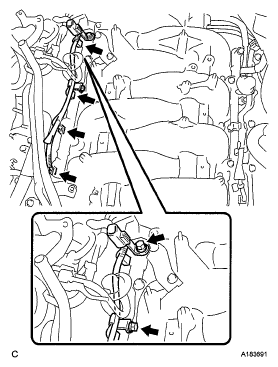

      Fig 3: Locating Wire Harness Bolts And Connectors
      G05750009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Connect the 4 connectors
  2. INSTALL NO. 3 FUEL HOSE  (See INSTALLATION )
  3. INSTALL WATER BY-PASS PIPE SUB-ASSEMBLY  (See INSTALLATION )
  4. INSTALL NO. 1 VACUUM SWITCHING VALVE ASSEMBLY  (See INSTALLATION )
  5. CONNECT ENGINE WIRE  (See INSTALLATION )
  6. INSTALL AIR CLEANER CASE SUB-ASSEMBLY  (See INSTALLATION )
  7. INSTALL AIR CLEANER CAP SUB-ASSEMBLY  (See INSTALLATION )
  8. INSTALL NO. 1 AIR CLEANER INLET  (See INSTALLATION )
  9. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  10. ADD ENGINE COOLANT  (See WATER PUMP )
  11. INSPECT FOR COOLANT LEAK  (See COOLING SYSTEM )
  12. INSPECT FOR FUEL LEAK  (See ON-VEHICLE INSPECTION )
  13. INSTALL ENGINE ROOM SIDE COVER LH  (See ENGINE UNIT )
  14. INSTALL ENGINE ROOM SIDE COVER RH  (See ENGINE UNIT )
  15. INSTALL COOL AIR INTAKE DUCT SEAL  (See ENGINE UNIT )
  16. INSTALL V-BANK COVER SUB-ASSEMBLY  (See ENGINE UNIT )
  17. INSTALL ENGINE UNDER COVER
