FUEL PRESSURE PULSATION DAMPER (for Port Injection): Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

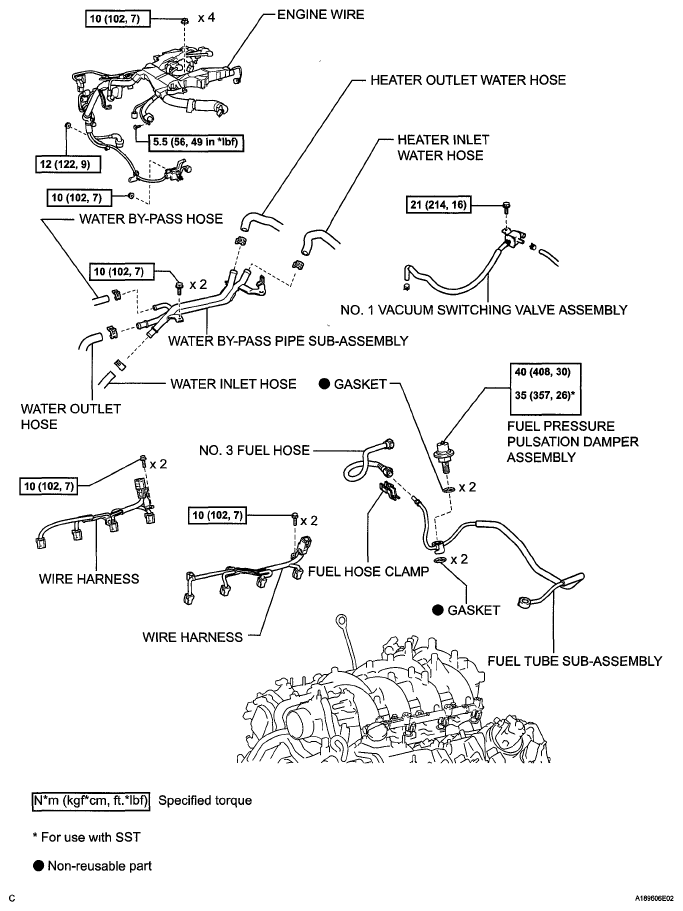

Fig 1: Identifying Fuel Pressure Pulsation Damper Replacement Components - For Port Injection With Torque Specifications (1 Of 2)

Fig 2: Fuel Pressure Pulsation Damper Replacement Components - For Port Injection With Torque Specifications (2 Of 2)
