FUEL INJECTOR (for Direct Injection): Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

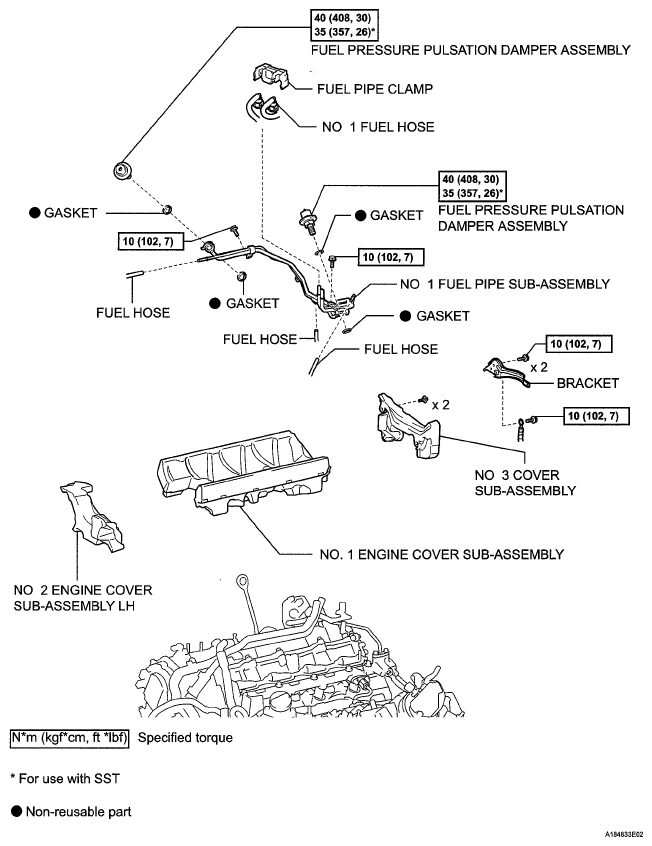

Fig 1: Fuel Pressure Pulsation Damper Replacement Components - For Direct Injection (1 Of 2) With Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

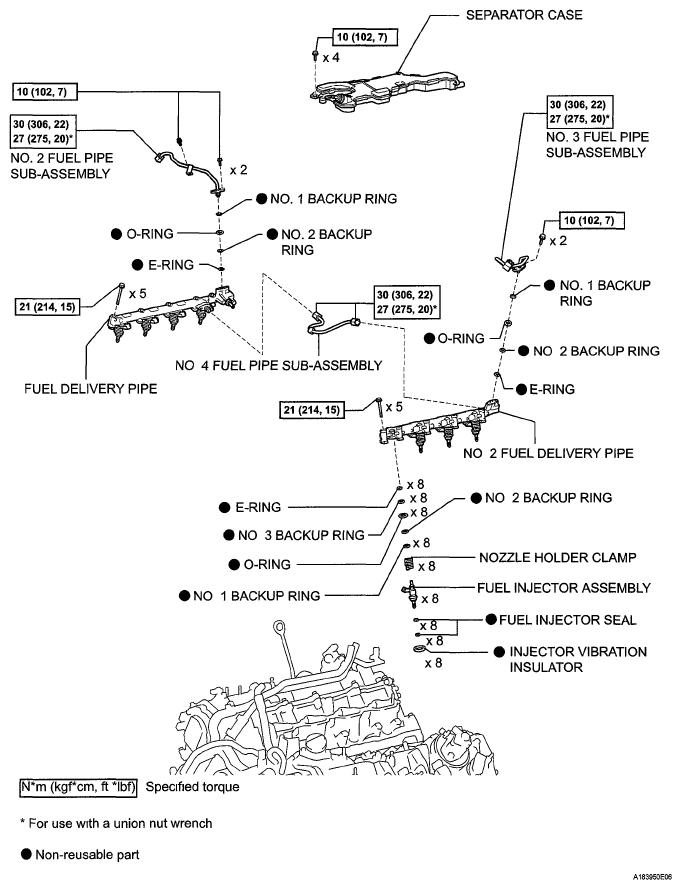

Fig 2: Identifying Fuel Injector Replacement Components - For Direct Injection (2 Of 3) With Torque Specifications

Fig 3: Fuel Injector Replacement Components - For Direct Injection (3 Of 3) With Torque Specifications
