Power Source Mode does not Change: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

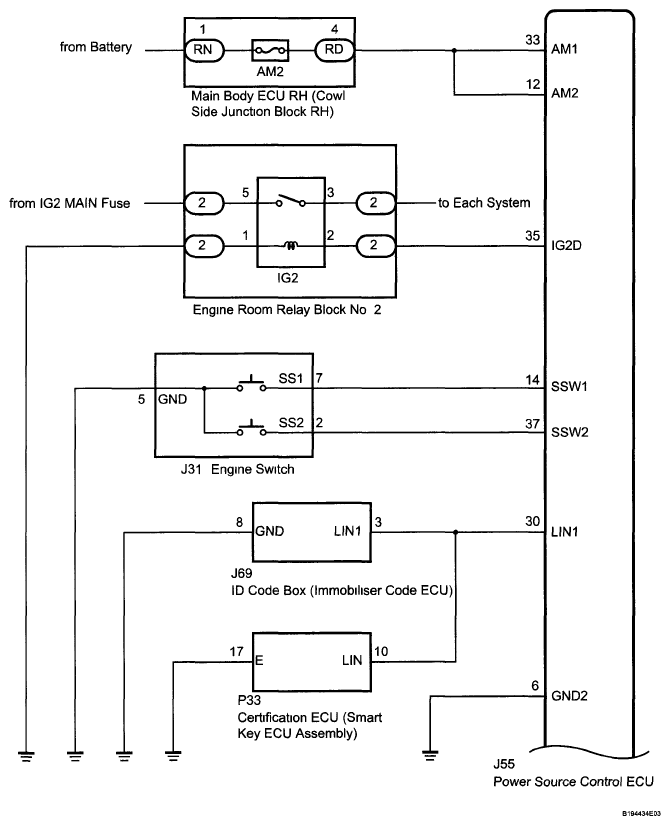

Fig 1: Main Body ECU And Power Source Control ECU - Wiring Diagram (1 Of 2)
G05754456Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

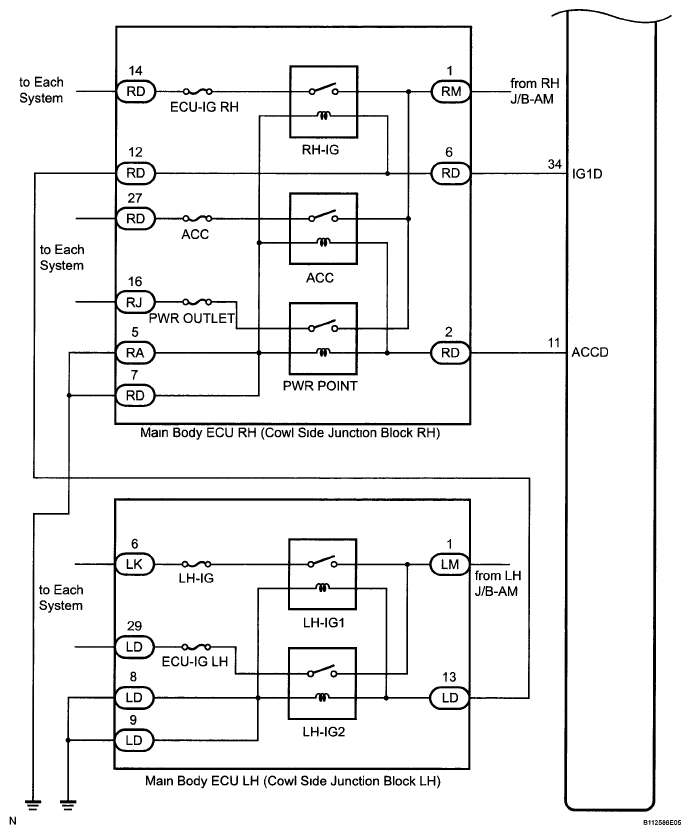

Fig 2: Main Body ECU And Power Source Control ECU - Wiring Diagram (2 Of 2)
G05754457Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
