Engine does not Start: Description

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
  1. ENGINE START SYSTEM FUNCTION
    1. If the engine switch is pressed with the shift lever is in P or N and the brake pedal depressed, the power source control ECU determines that it is an engine start request
    2. The certification ECU (smart key ECU assembly) and other ECUs perform key verification via the LIN communication line
    3. The power source control ECU activates the ACC relay
    4. The power source control ECU activates the IG1 and IG2 relays
    5. The certification ECU (smart key ECU assembly) outputs a steering UNLOCK signal The signal is sent to the power source control ECU via the steering lock ECU
    6. The power source control ECU sends an engine start request signal to the ECM.
    7. The ECM sends an ACC cut request signal to the power source control ECU
    8. The ECM and power source control ECU activate the starter relay.
    9. The power source control ECU deactivates the ACC relay until the power source control ECU detects an engine start

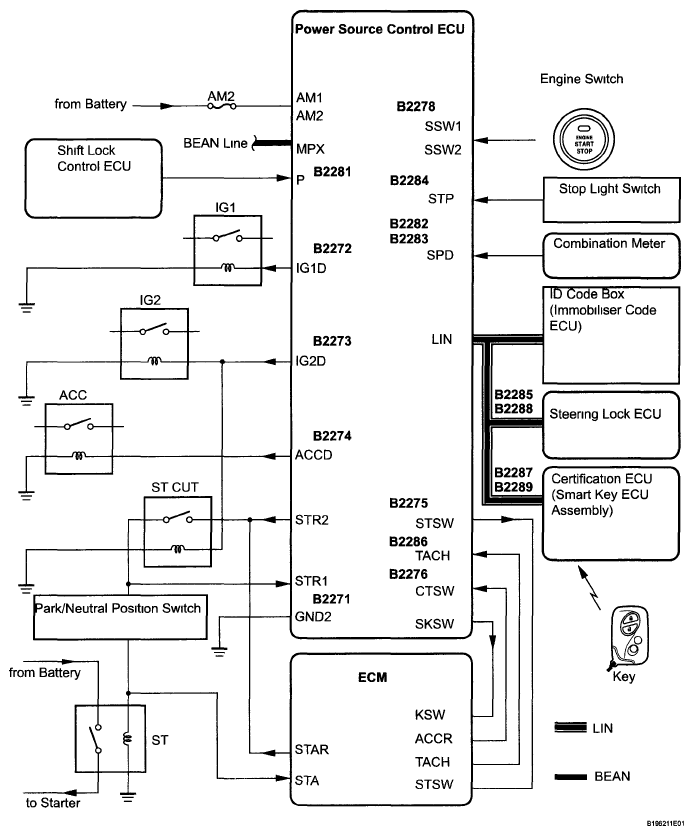

      Fig 1: Power Source Control ECU - System Diagram
      G05754399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
