Engine Switch indicator Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

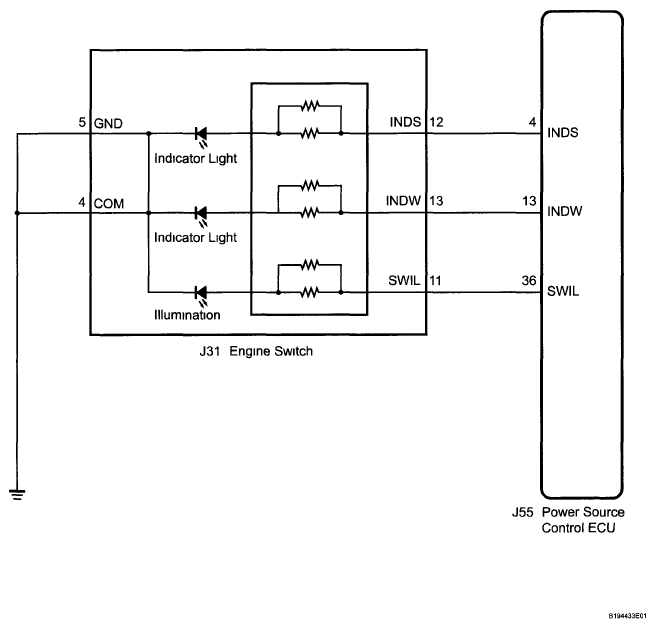

Fig 1: Engine Switch And Power Source Control ECU - Wiring Diagram
G05754483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
