DTC B2272: Ignition 1 Monitor Malfunction: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

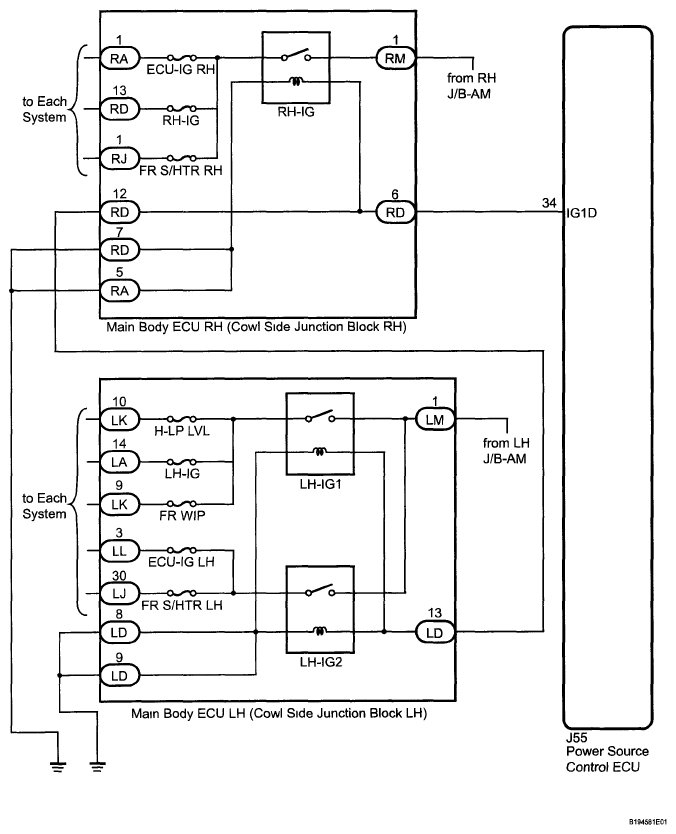

Fig 1: Power Source Control ECU - Wiring Diagram
G05754414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
