ELECTRICAL KEY OSCILLATOR (for Front Door): Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Electrical Key Oscillator Components (1 Of 2)
G05754549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

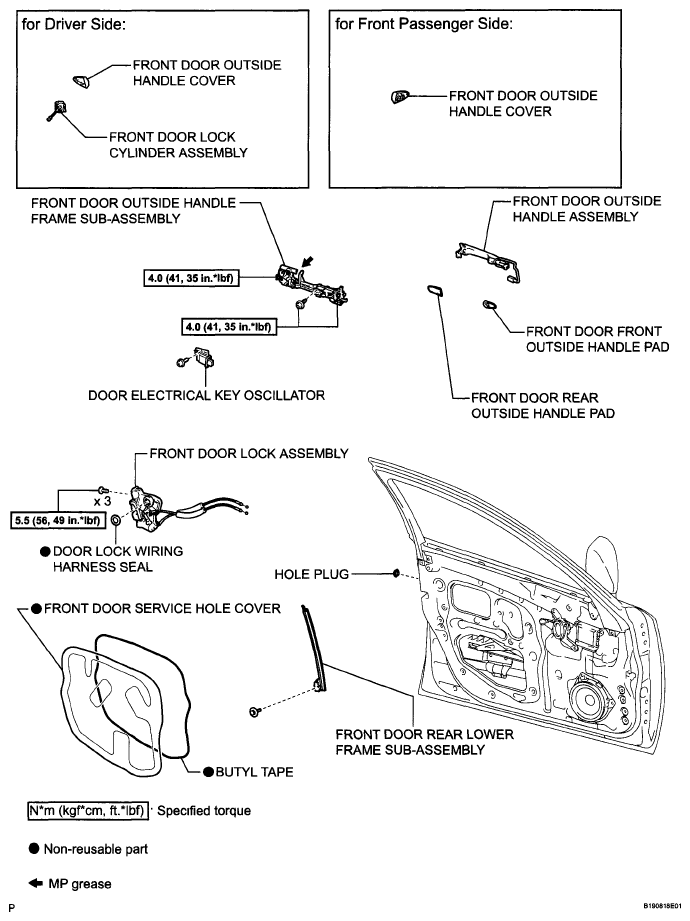

Fig 2: Electrical Key Oscillator Replacement Components (2 Of 2) with Torque Specifications
G05754550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
