DTC P2765: Input / Turbine Speed Sensor "B" Circuit; DTC P2767: Input / Turbine Speed Sensor "B" Circuit No Signal: Description
WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

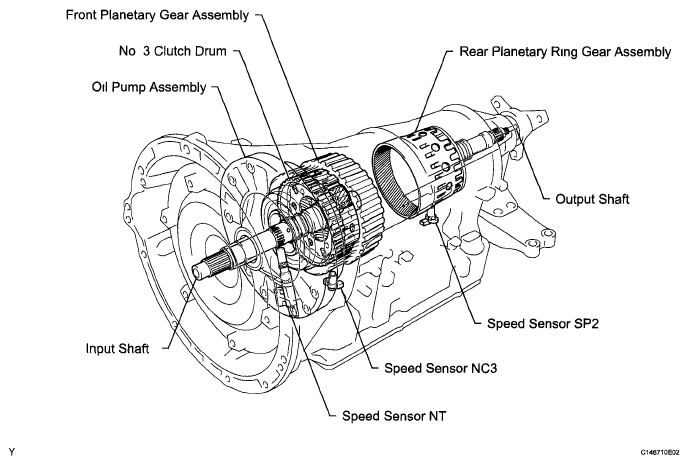

The speed sensor (NC3) detects the automatic transmission No 3 clutch drum rotation speed.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 DTC DETECTION CONDITION AND TROUBLE AREA
| DTC Code |
DTC Detection Condition
- Diagnosis Condition
- Malfunction Status
- Malfunction Time
- Other
|
Trouble Area |
| P2765 |
- With PNP switch and speed sensor (NC3) in normal condition, output wheel speed is 1000 rpm or more (when changing to 7th gear, output wheel speed is 1400 rpm or more)
- Speed sensor (NC3) output voltage is less than 0 1 V, or 1 9 V or more
- 45 seconds
- 1 trip detection logic
|
- Speed sensor (NC3)
- Transmission wire
- Harness and connector
- TCM
|
| P2767 |
- With PNP switch and speed sensor (NC3) in normal condition, output wheel speed is 1000 rpm or more (when changing to 7th gear, output wheel speed is 1400 rpm or more)
- Speed sensor (NC3) sensor value is less than 300 rpm
- 5 seconds
- 1 trip detection logic
|
- Speed sensor (NC3)
- Transmission wire
- Harness and connector
- TCM
|
