Automatic Transmission Rear Oil Seal: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

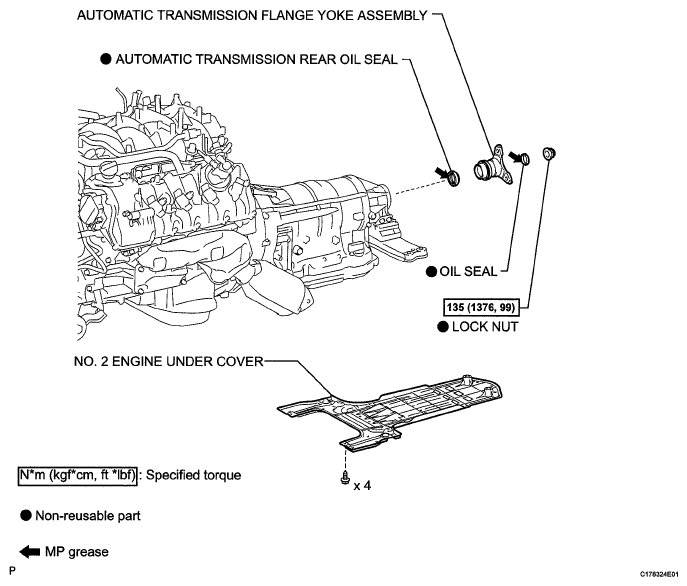

Fig 1: Identifying Automatic Transmission Rear Oil Seal Replacement Components (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Automatic Transmission Rear Oil Seal Replacement Components (2 Of 4) with Torque Specifications

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Identifying Automatic Transmission Rear Oil Seal Replacement Components (3 Of 4) with Torque Specifications

Fig 4: Automatic Transmission Rear Oil Seal Replacement Components (4 Of 4) with Torque Specifications
