Air Cooled Oil Cooler: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Identifying Air Cooled Oil Cooler Replacement Components (1 Of 2)
G05750911Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

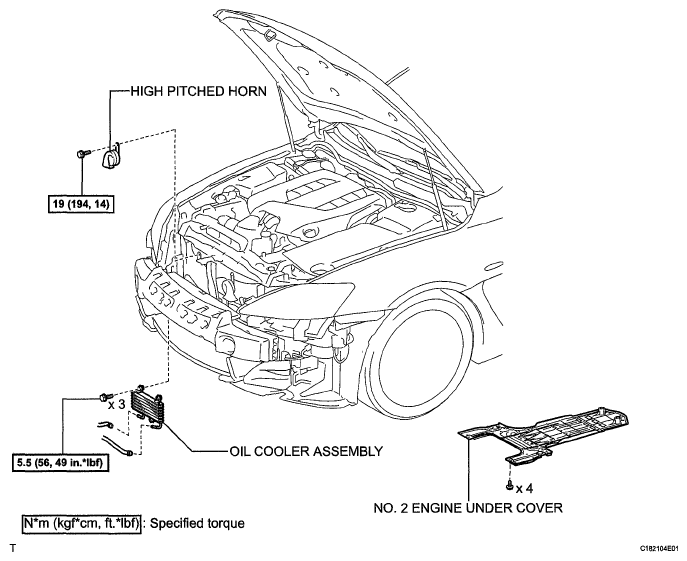

Fig 2: Air Cooled Oil Cooler Replacement Components (2 Of 2) with Torque Specifications
G05750912Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
