Rear Light Assembly: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

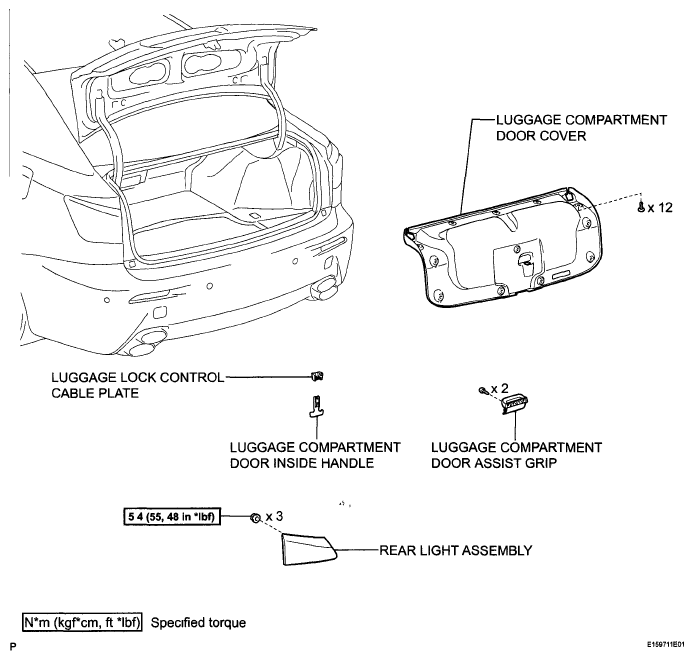

Fig 1: Identifying Rear Light Assembly Replacement Components With Torque Specifications (1 Of 2)
G05756562Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

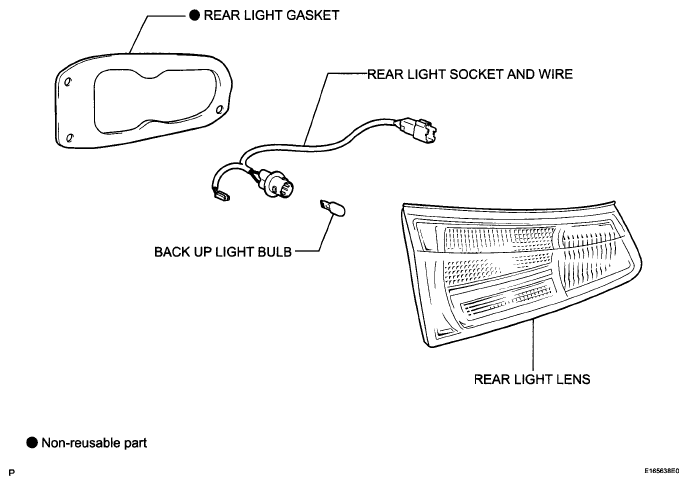

Fig 2: Identifying Rear Light Assembly Components (2 Of 2)
G05756563Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
