Taillight Circuit: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

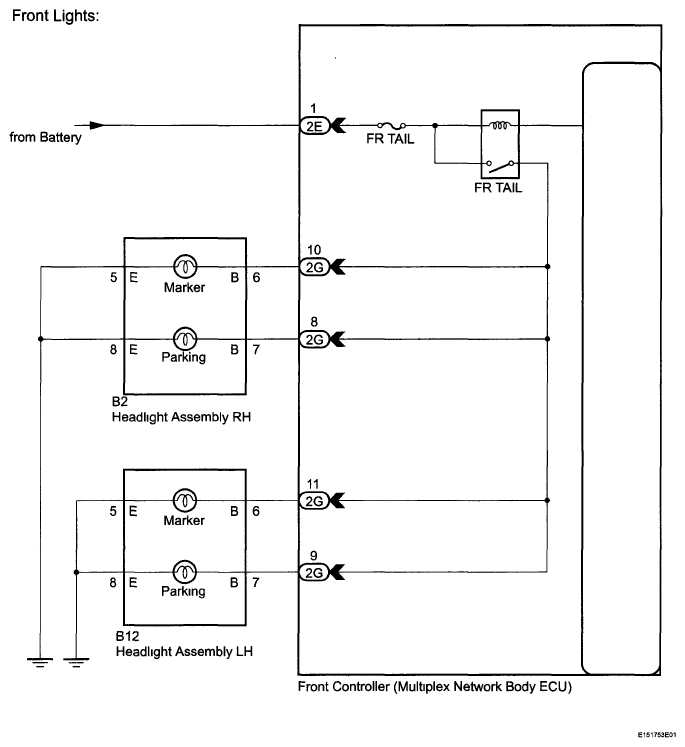

Fig 1: Taillight Circuit - Wiring Diagram (Front Lights)
G05756445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

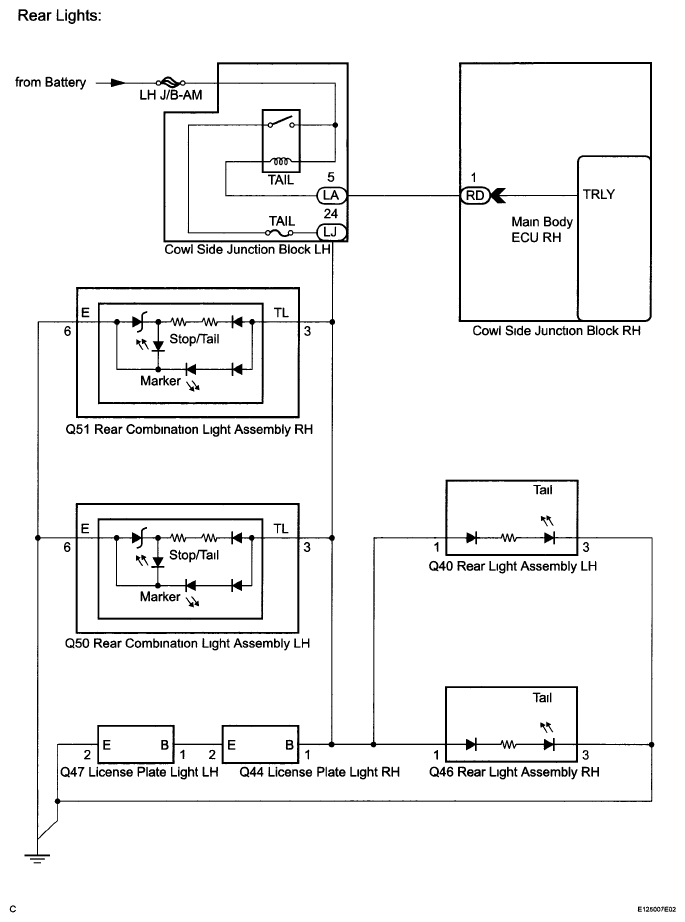

Fig 2: Taillight Circuit - Wiring Diagram (Rear Lights)
G05756446Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
