Hazard Warning Switch: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

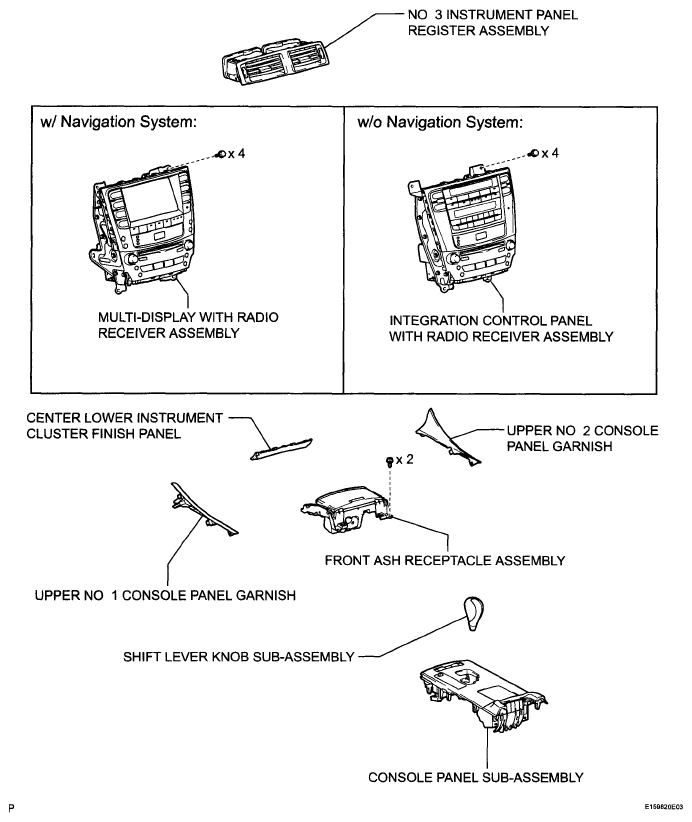

Fig 1: Identifying Hazard Warning Switch Replacement Components (1 Of 3)
G05756587Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

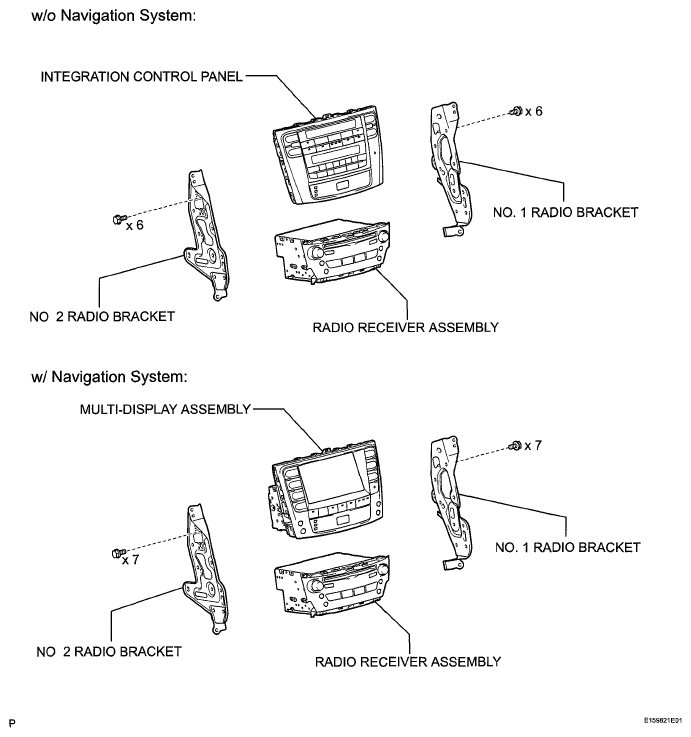

Fig 2: Identifying Hazard Warning Switch Replacement Components (2 Of 3)
G05753399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

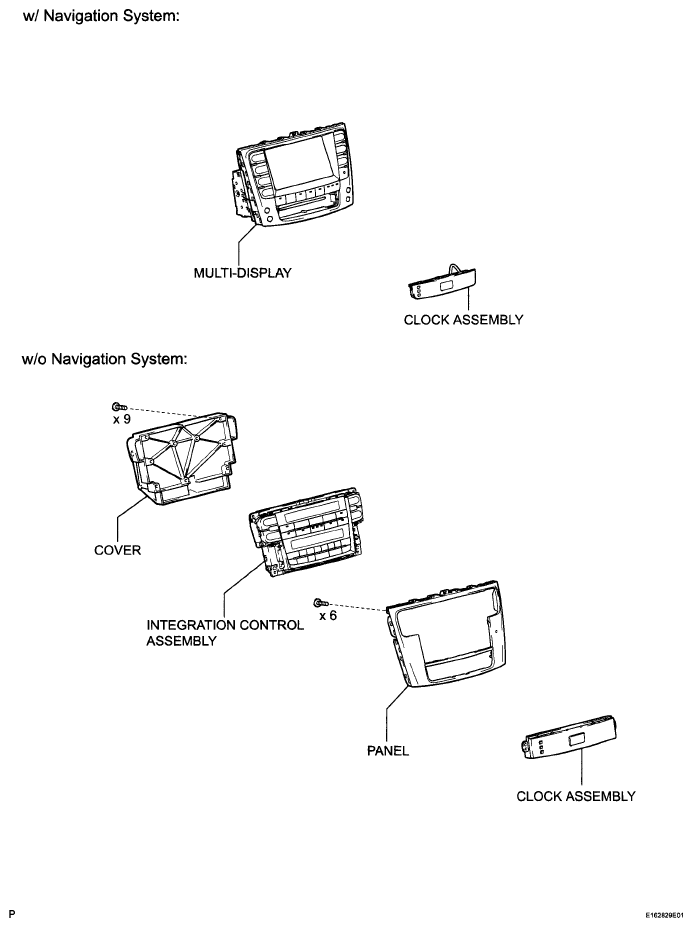

Fig 3: Identifying Hazard Warning Switch Replacement Components (3 Of 3)
G05754767Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
