Rear Differential Carrier Assembly: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

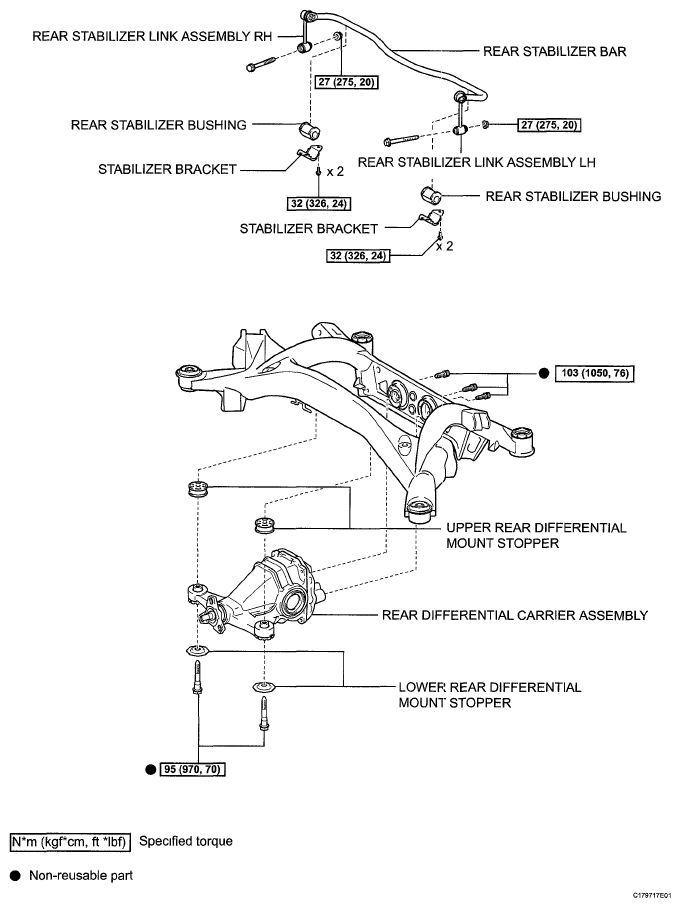

Fig 1: Identifying Rear Differential Carrier Assembly Replacement Components With Torque Specification (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

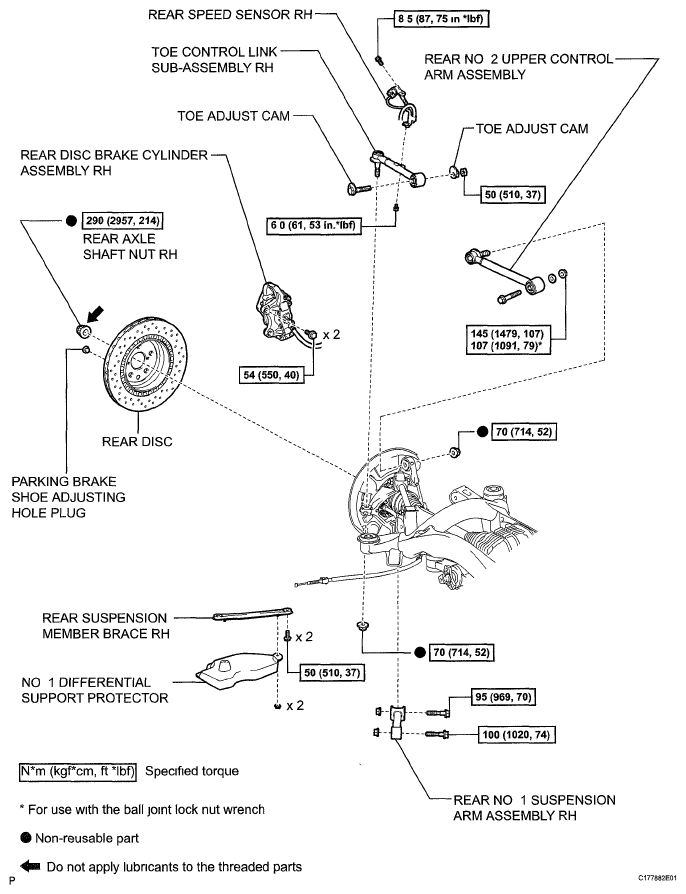

Fig 2: Identifying Rear Differential Carrier Assembly Replacement Components With Torque Specification (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

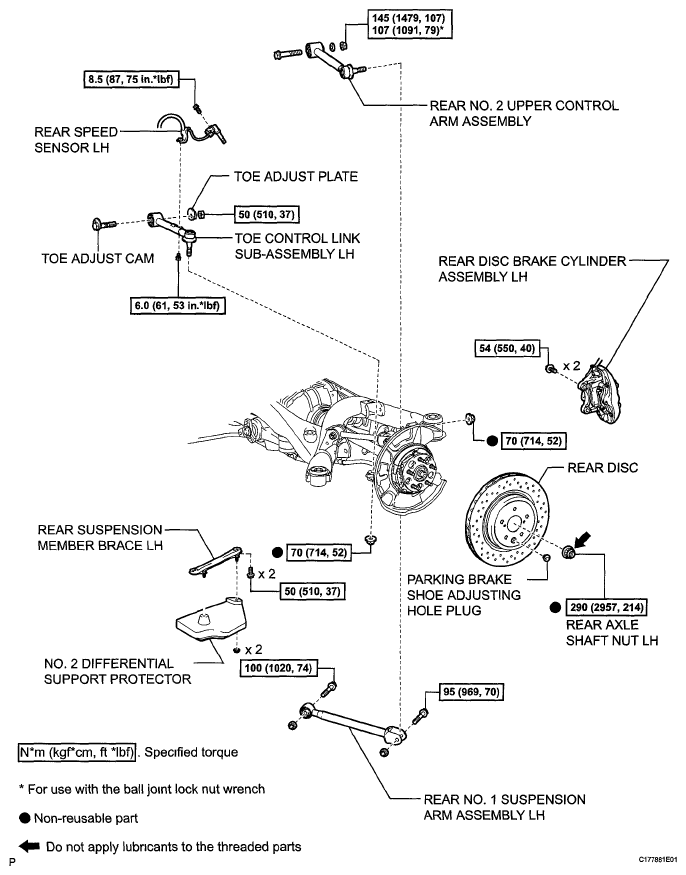

Fig 3: Identifying Rear Differential Carrier Assembly Replacement Components With Torque Specification (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

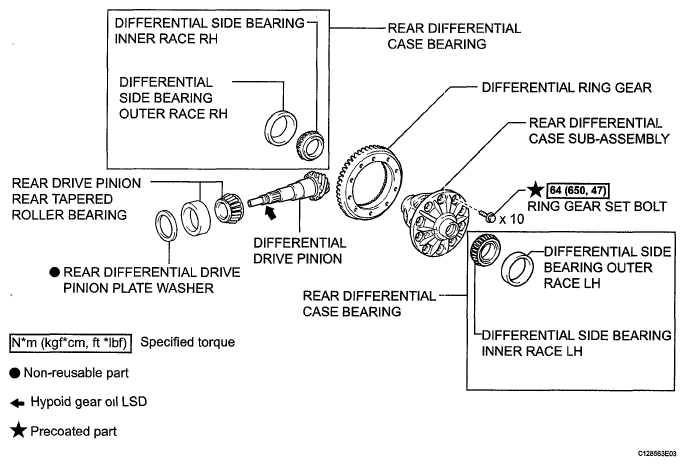

Fig 4: Identifying Rear Differential Carrier Assembly Replacement Components With Torque Specification (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

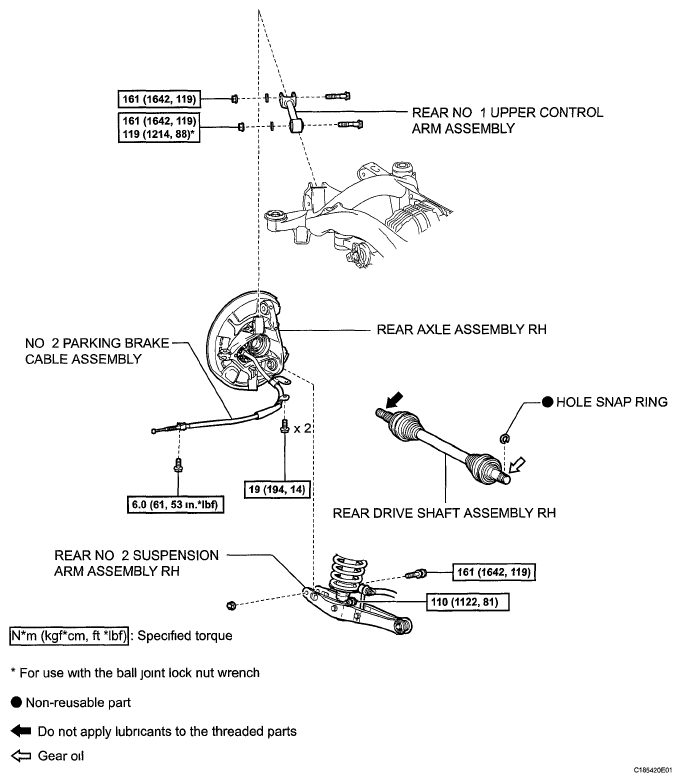

Fig 5: Identifying Rear Differential Carrier Assembly Replacement Components With Torque Specification (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

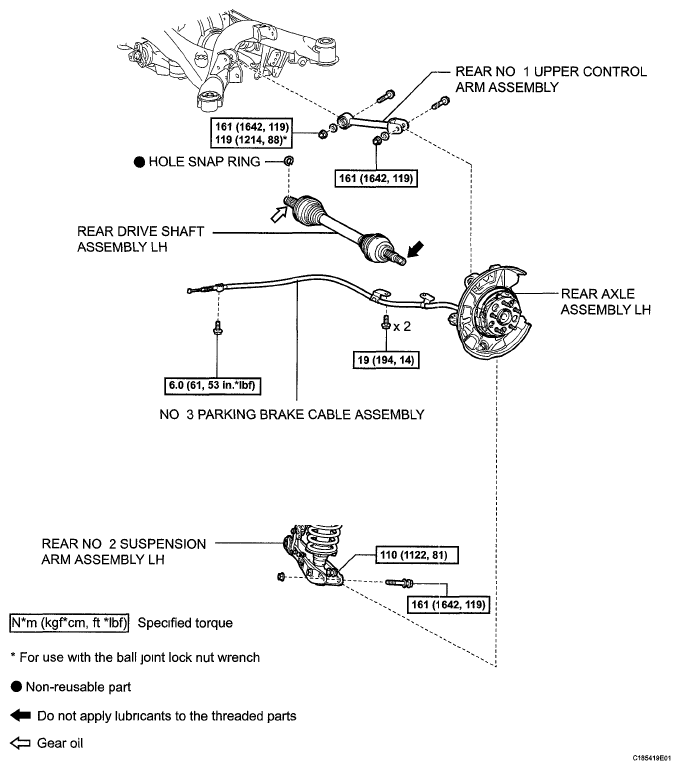

Fig 6: Rear Differential Carrier Assembly Replacement Components With Torque Specifications (6 Of 8)

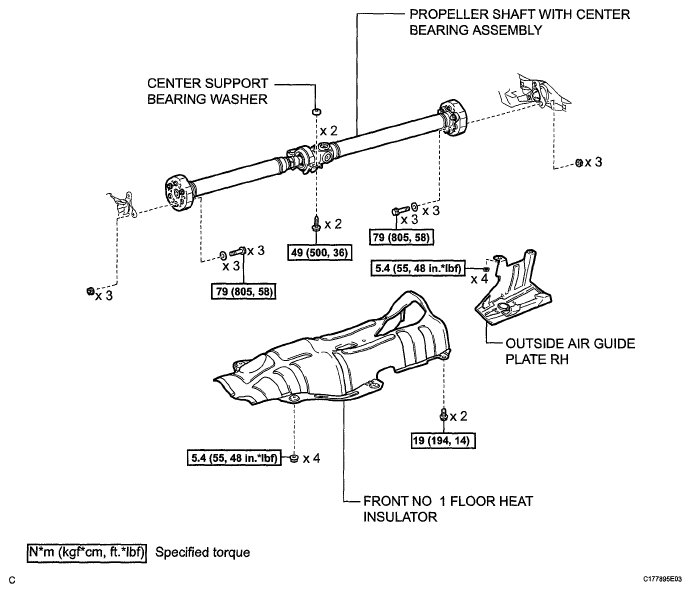

Fig 7: Rear Differential Carrier Assembly Replacement Components With Torque Specifications (7 Of 8)

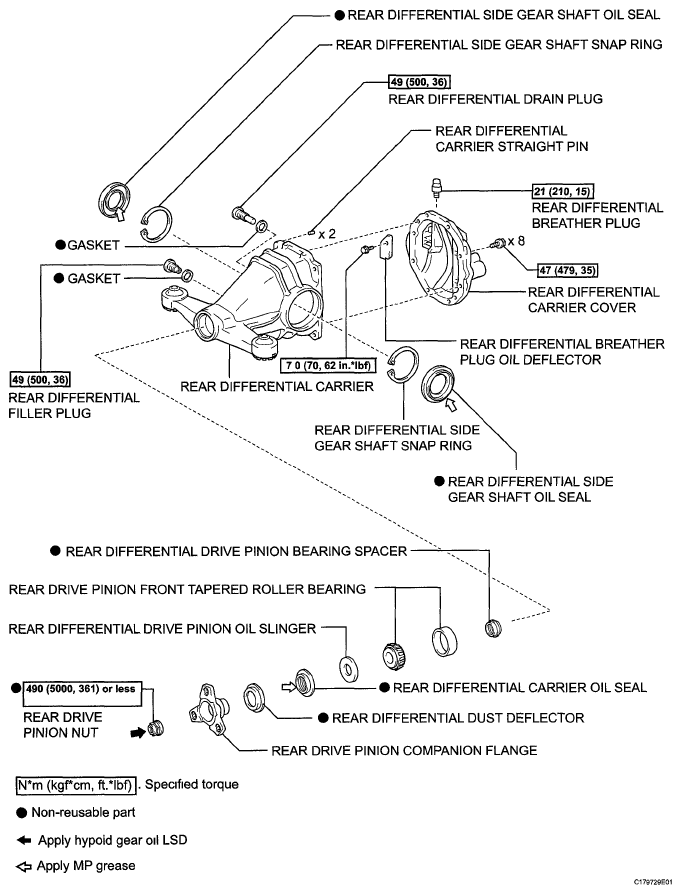

Fig 8: Rear Differential Carrier Assembly Replacement Components With Torque Specifications (8 Of 8)
