Differential Mount Cushion: Components

WARNING: This page is about a different car, the 2008 Lexus IS F. However, it is still accessible from the selected car via links, so may be relevant.

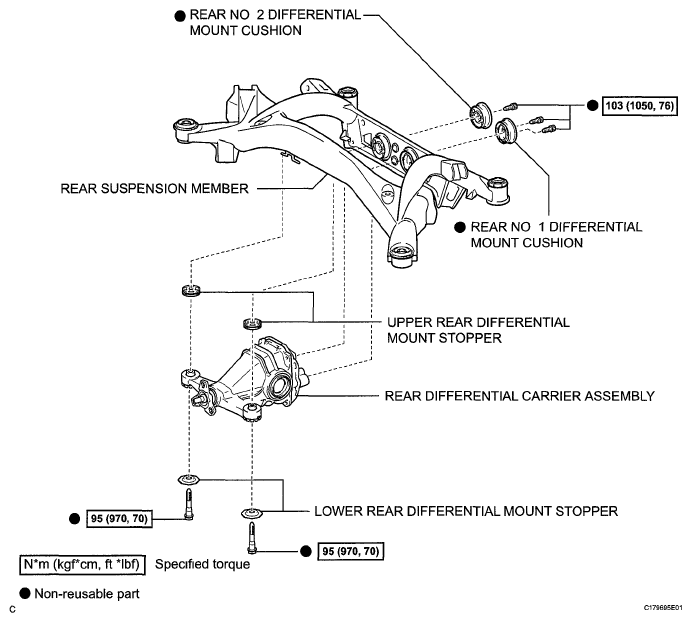

Fig 1: Differential Mount Cushion Replacement Components With Torque Specifications
G05752217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
