Inspection Procedure

HINT:

Read freeze frame data using Techstream. The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air/fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction (See FREEZE FRAME DATA ).

1. INSPECT FUEL PUMP FOR HIGH PRESSURE
   1. Disconnect the E41 fuel pump for high pressure connector.
   2. Measure the resistance according to the value(s) in the table below.

      Standard resistance

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Condition	Specified Condition
      1-2	20°C (68°F)	1.19 to 1.39 Ω

   3. Reconnect the fuel pump for high pressure connector.
   Fig 1: Identifying Terminals Of E41 Fuel Pump For High Pressure Connector
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPLACE FUEL PUMP FOR HIGH PRESSURE

   OK: Go to next step

2. CHECK HARNESS AND CONNECTOR (INJECTOR DRIVER - FUEL PUMP FOR HIGH PRESSURE)
   1. Disconnect the E27 injector driver (EDU) connector.
   2. Disconnect the E41 fuel pump for high pressure connector.
   3. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Specified Condition
      FP+ (E27-3) - E41-1	Below 1 Ω
      FP - (E27-4) - E41-2	Below 1 Ω

      Standard resistance (Check for short)

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Specified Condition
      FP+ (E27-3) or E41-1 - Body ground	10 kΩ or higher
      FP- (E27-4) or E41-2 - Body ground	10 kΩ or higher

   4. Reconnect the injector driver (EDU) connector.
   5. Reconnect the fuel pump for high pressure connector.
   Fig 2: Identifying Terminals Of E41 Fuel Pump For High Pressure Connector
   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: Go to next step

3. INSPECT ECM (FPD AND FPF1 VOLTAGE)
   1. Start the engine, and check the waveforms between terminals FPF1 and E1, and FPD and E1 of the E6 and E4 ECM connectors.

      HINT:

      The correct waveform is as shown in the illustration.

   WAVEFORM REFERENCE



   ECM Terminal Name	CH1 : FPD (E6-33) - E1 (E4-7) CH2: FPF1 (E6-32) - E1 (E4-7)
   Tester Range	2 V/DIV. 5 ms./DIV.
   Conditions	Idling with warm engine

   Fig 3: Identifying Terminals Of E4 And E6 ECM Connectors

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK: REPLACE ECM

   NG: Go to next step

4. CHECK HARNESS AND CONNECTOR (INJECTOR DRIVER - ECM)
   1. Disconnect the E6 ECM connector.
   2. Disconnect the E26 injector driver (EDU) connector.
   3. Measure the resistance according to the value(s) in the table below.

      Standard resistance (Check for open)

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Specified Condition
      FPF1 (E6-32) - FPF1 (E26-7)	Below 1 Ω
      FPD (E6-33) - FPD (E26-8)	Below 1 Ω

      Standard resistance (Check for short)

      TESTER CONNECTION SPECIFIED CONDITION CHART



      Tester Connection	Specified Condition
      FPF1 (E6-32) or FPF1 (E26-7) - Body ground	10 kΩ or higher
      FPD (E6-33) or FPD (E26-8) - Body ground	10 kΩ or higher

   4. Reconnect the ECM connector.
   5. Reconnect the injector driver (EDU) connector.

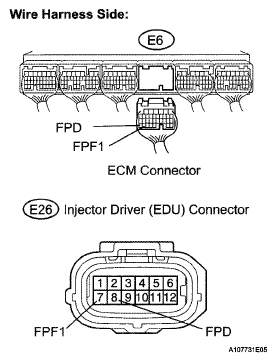

      Fig 4: Identifying Terminals Of E26 Injector Driver Connector

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

   OK: REPLACE INJECTOR DRIVER
