DTC P0617 Starter Relay Circuit High: Wiring Diagram

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

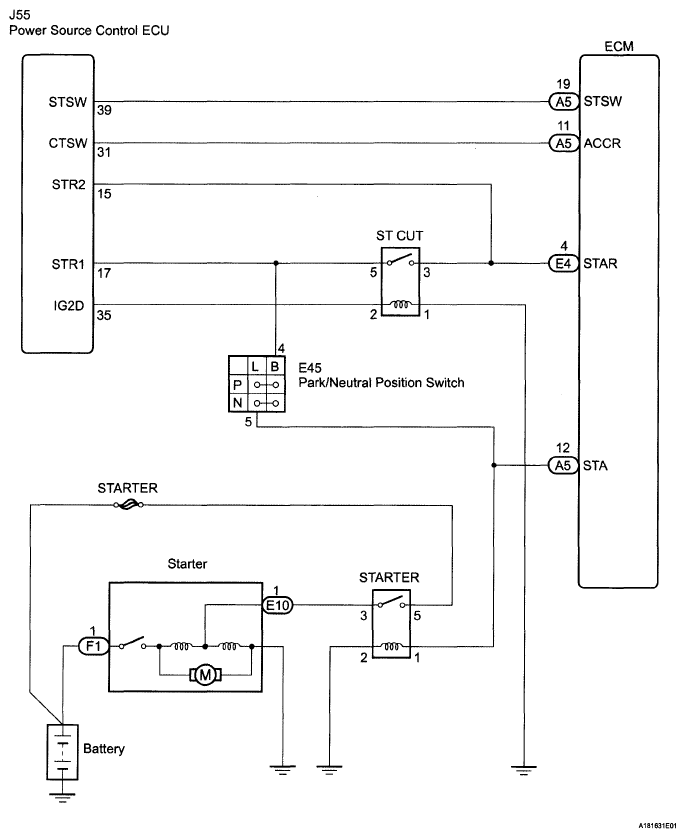

Fig 1: Starter Relay - Wiring Diagram
G05822679Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
