Engine Coolant Temperature Sensor: Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

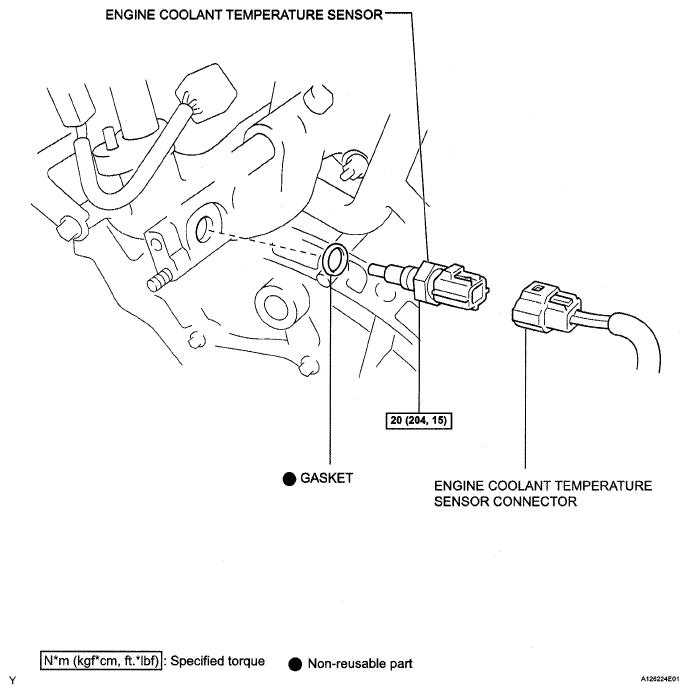

Fig 1: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specification (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Engine Coolant Temperature Sensor Replacement Components With Torque Specification (2 Of 3)

Fig 3: Engine Coolant Temperature Sensor Replacement Components With Torque Specifications (3 Of 3)
