Section 176 (Engine Control System (2GR-FSE) - System And Component Testing, On-Vehicle Inspection, Removal, Inspection & Installation): ECM: Components

WARNING: This page is about a different car, the 2008 Lexus IS 350. However, it is still accessible from the selected car via links, so may be relevant.

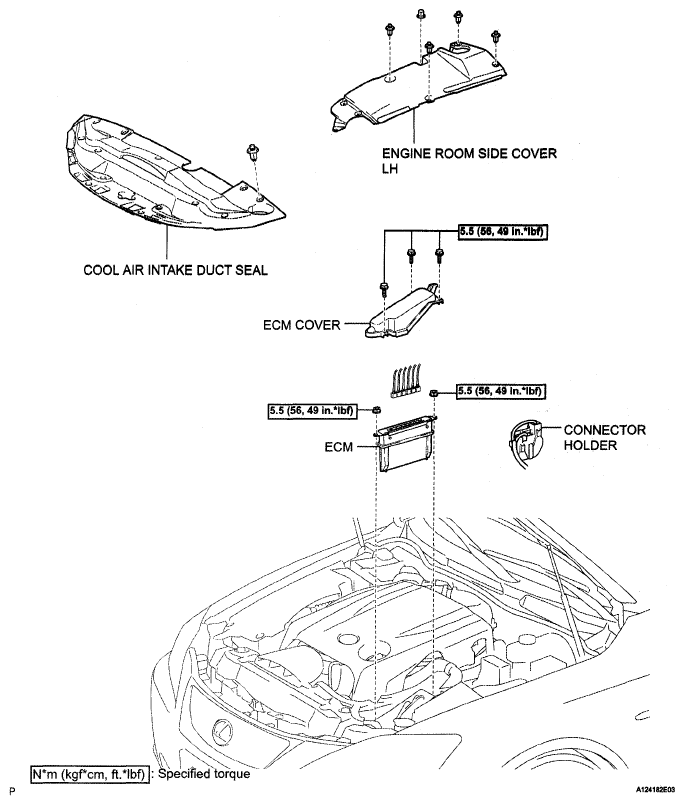

Fig 1: ECM Replacement Components With Torque Specifications
G05316277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
